簡介
本文檔主要介紹 SDK 接口參考信息，包括主要功能、接口函數和回調函數。
主要功能包括：SDK 初始化、設備登錄、實時預覽、云臺控制、語音對講、報警監聽、智能訂閱、
錄像回放和錄像下載等。
根據環境不同，開發包包含的文件會不同，具體如下所示。

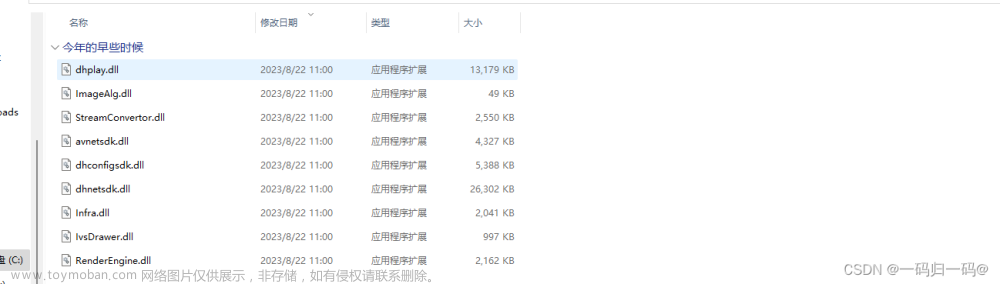

Windows 開發包所包含的文件如下：

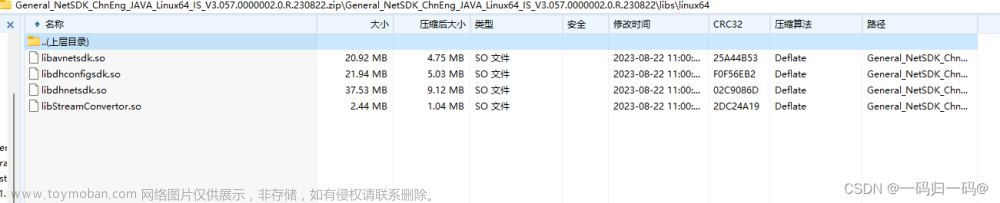

Linux 開發包所包含的文件如下：
SDK 的功能庫和配置庫是必備庫。
功能庫是設備網絡 SDK 的主體，主要用于網絡客戶端與各類產品之間的通訊交互，負責遠程
控制、查詢、配置及碼流數據的獲取和處理等。
配置庫針對配置功能的結構體進行打包和解析。
推薦使用播放庫進行碼流解析和播放。
環境要求
1、推薦內存：不低于 512 MB。
2、Jdk 使用版本：jdk1.6；jdk1.8
3、SDK 支持的系統：
- Windows 10/Windows 8.1/Windows 7/vista/XP/2000 以及 Windows Server 2008/2003。
- Linux Red Hat/SUSE 等通用 Linux 系統
庫加載問題及解決方法
目前提供 Windows(.dll)、Linux(.so)兩種平臺的動態庫。其中 win 和 linux 分為 64 位、32 位版本。
而調用 C++動態庫的主要的方式分為“直接使用 Java 項目”和“將 Java 項目作為其他項目的 jar
包依賴運行”兩種。在加載庫的過程中會出現“找不到動態庫”的相關錯誤。
“找不到動態庫”問題的根本原因?yàn)榇a路徑和物理路徑不匹配。因?yàn)?linux 版本的動態庫名稱
相較于 Windows 版本多出 lib 前綴，故 Linux 環境下加載動態庫需要注意 lib 的前綴，在拼接動態

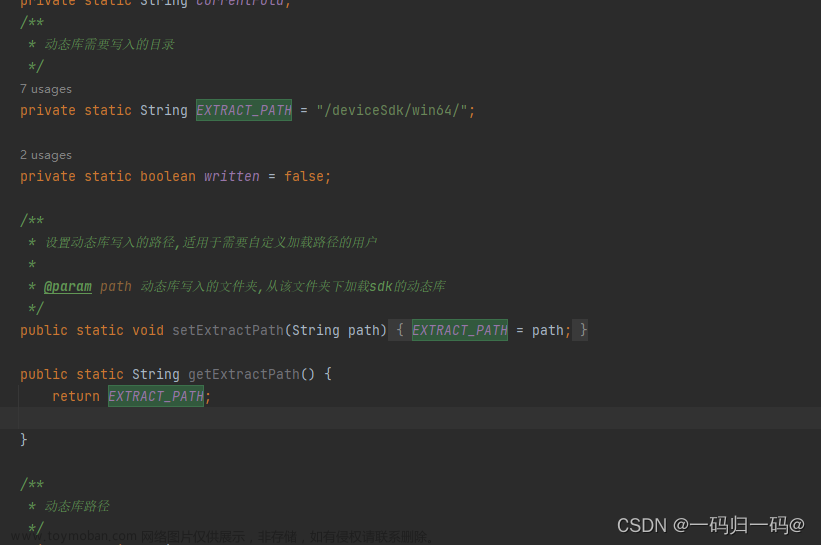

庫路徑時需要加上 lib 前綴。使用 java.io.tmpdir 方式實現路徑映射時，需要注意此種方式優先級
較低。
大華攝像頭Java SDK，完成攝像頭設備登錄、視頻錄像
下載大華攝像頭Java sdk
下載好項目部署所在服務器類型的sdk，如果windows 與linux 都要部署或使用可以將兩個版本的sdk都下載下來，然后共用一套java代碼，只需要判斷當前系統類型然后加載不同的libs就好了。

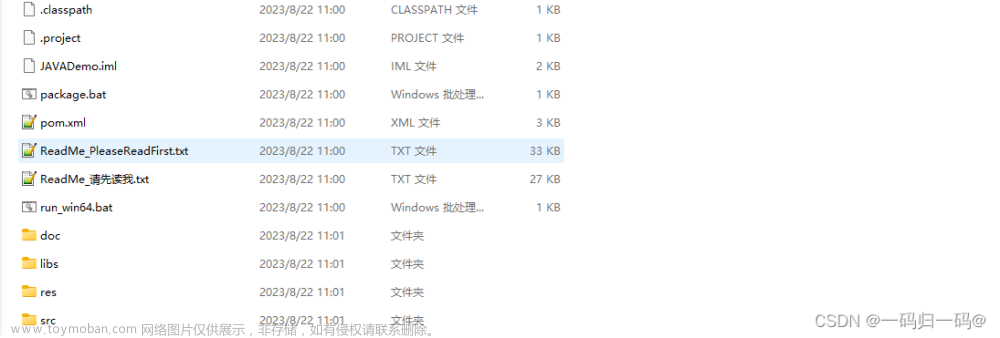

目錄結構
doc是sdk的文檔存放路徑
libs是c++依賴庫
res是國際化相關配置
windows 的c++代碼
Linux的C++代碼

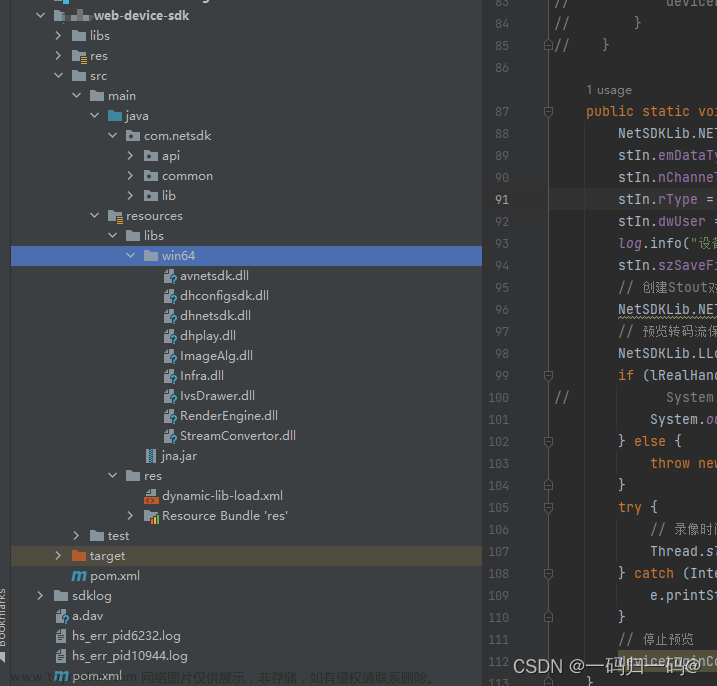

項目結構
Common包與lib包為大華sdk封裝的代碼，直接copy過來就好

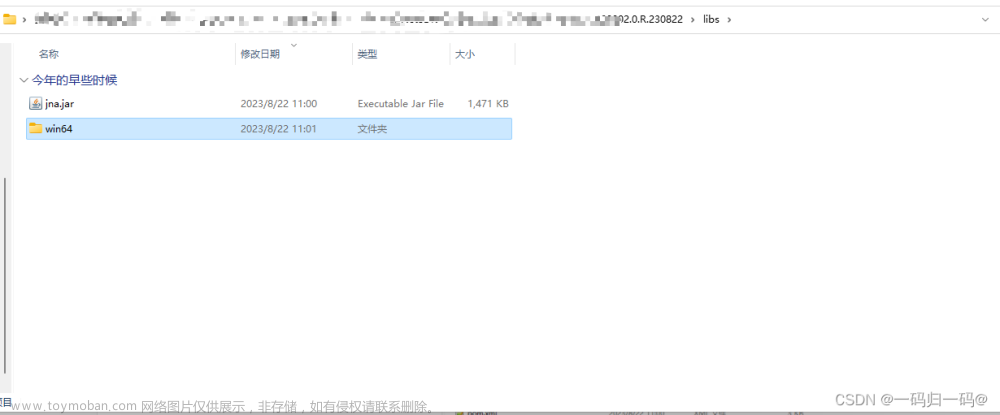

libs包下有一個jnajar包，這個jar包可以通過maven命令打入本地廠庫或者直接引入
按照demo的封裝，進行自己的封裝，以下是api包下的代碼
登錄
代碼是否可用可直接運行main方法
import com.netsdk.common.Res;
import com.netsdk.lib.NetSDKLib;
import com.netsdk.lib.ToolKits;
import com.sun.jna.Pointer;
import lombok.Data;
import lombok.extern.slf4j.Slf4j;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.util.Vector;
/**
* 設備登錄
*/
@Slf4j
@Data
public class DeviceLoginControl {
public static NetSDKLib netsdk = NetSDKLib.NETSDK_INSTANCE;
public NetSDKLib configsdk = NetSDKLib.CONFIG_INSTANCE;
public NetSDKLib.LLong m_hPlayHandleOne = new NetSDKLib.LLong(0);
private Vector<String> chnlist = new Vector<String>();
public NetSDKLib.LLong m_hPlayHandleTwo = new NetSDKLib.LLong(0);
// 設備信息
public NetSDKLib.NET_DEVICEINFO_Ex m_stDeviceInfo = new NetSDKLib.NET_DEVICEINFO_Ex();
private NetSDKLib.LLong lRealHandle;
private String videoStoragePath;
private Long cycleTime;
private Long cleanCycle;
// 登陸句柄
public NetSDKLib.LLong m_hLoginHandle = new NetSDKLib.LLong(0);
private static boolean bInit = false;
private static boolean bLogopen = false;
public DeviceLoginControl() {
}
public DeviceLoginControl(NetSDKLib.fDisConnect disConnect, NetSDKLib.fHaveReConnect fHaveReConnect) {
init(disConnect, fHaveReConnect);
}
public boolean init(NetSDKLib.fDisConnect disConnect, NetSDKLib.fHaveReConnect haveReConnect) {
bInit = netsdk.CLIENT_Init(disConnect, null);
if (!bInit) {
log.info("Initialize SDK failed");
return false;
}
//打開日志，可選
NetSDKLib.LOG_SET_PRINT_INFO setLog = new NetSDKLib.LOG_SET_PRINT_INFO();
File path = new File("./sdklog/");
if (!path.exists()) {
path.mkdir();
}
String logPath = path.getAbsoluteFile().getParent() + "\\sdklog\\" + ToolKits.getDate() + ".log";
setLog.nPrintStrategy = 0;
setLog.bSetFilePath = 1;
System.arraycopy(logPath.getBytes(), 0, setLog.szLogFilePath, 0, logPath.getBytes().length);
System.out.println(logPath);
setLog.bSetPrintStrategy = 1;
bLogopen = netsdk.CLIENT_LogOpen(setLog);
if (!bLogopen) {
log.error("Failed to open NetSDK log");
}
// 設置斷線重連回調接口，設置過斷線重連成功回調函數后，當設備出現斷線情況，SDK內部會自動進行重連操作
// 此操作為可選操作，但建議用戶進行設置
netsdk.CLIENT_SetAutoReconnect(haveReConnect, null);
//設置登錄超時時間和嘗試次數，可選
int waitTime = 5000; //登錄請求響應超時時間設置為5S
int tryTimes = 1; //登錄時嘗試建立鏈接1次
netsdk.CLIENT_SetConnectTime(waitTime, tryTimes);
// 設置更多網絡參數，NET_PARAM的nWaittime，nConnectTryNum成員與CLIENT_SetConnectTime
// 接口設置的登錄設備超時時間和嘗試次數意義相同,可選
NetSDKLib.NET_PARAM netParam = new NetSDKLib.NET_PARAM();
netParam.nConnectTime = 10000; // 登錄時嘗試建立鏈接的超時時間
netParam.nGetConnInfoTime = 3000; // 設置子連接的超時時間
netParam.nGetDevInfoTime = 3000;//獲取設備信息超時時間，為0默認1000ms
netsdk.CLIENT_SetNetworkParam(netParam);
return true;
}
public static void main(String[] args) throws IOException {
DeviceLoginControl deviceLoginControl = new DeviceLoginControl();
deviceLoginControl.login("ip", 37777, "username", "password");
}
public boolean login(String m_strIp, int m_nPort, String m_strUser, String m_strPassword) {
//IntByReference nError = new IntByReference(0);
//入?yún)? NetSDKLib.NET_IN_LOGIN_WITH_HIGHLEVEL_SECURITY pstInParam = new NetSDKLib.NET_IN_LOGIN_WITH_HIGHLEVEL_SECURITY();
pstInParam.nPort = m_nPort;
pstInParam.szIP = m_strIp.getBytes();
pstInParam.szPassword = m_strPassword.getBytes();
pstInParam.szUserName = m_strUser.getBytes();
//出參
NetSDKLib.NET_OUT_LOGIN_WITH_HIGHLEVEL_SECURITY pstOutParam = new NetSDKLib.NET_OUT_LOGIN_WITH_HIGHLEVEL_SECURITY();
pstOutParam.stuDeviceInfo = m_stDeviceInfo;
//m_hLoginHandle = netsdk.CLIENT_LoginEx2(m_strIp, m_nPort, m_strUser, m_strPassword, 0, null, m_stDeviceInfo, nError);
m_hLoginHandle = netsdk.CLIENT_LoginWithHighLevelSecurity(pstInParam, pstOutParam);
if (m_hLoginHandle.longValue() == 0) {
System.err.printf("Login Device[%s] Port[%d]Failed. %s\n", m_strIp, m_nPort, ToolKits.getErrorCodePrint());
} else {
System.out.println("Login Success [ " + m_strIp + " ]");
}
return m_hLoginHandle.longValue() == 0 ? false : true;
}
public void realPlayByDataType() {
// 創建Stin對象 設置碼流格式 通道號 預覽類型 用戶數據 保存文件名稱
NetSDKLib.NET_IN_REALPLAY_BY_DATA_TYPE stIn = new NetSDKLib.NET_IN_REALPLAY_BY_DATA_TYPE();
stIn.emDataType = NetSDKLib.EM_REAL_DATA_TYPE.EM_REAL_DATA_TYPE_GBPS;
stIn.nChannelID = 0;
stIn.rType = NetSDKLib.NET_RealPlayType.NET_RType_Realplay;
stIn.dwUser = null;
stIn.szSaveFileName = "D:\\DahuaResult\\result.flv"; // 轉換后的裸H264碼流文件名
// 創建Stout對象
NetSDKLib.NET_OUT_REALPLAY_BY_DATA_TYPE stOut = new NetSDKLib.NET_OUT_REALPLAY_BY_DATA_TYPE();
// 預覽轉碼流保存
NetSDKLib.LLong lRealHandle = netsdk.CLIENT_RealPlayByDataType(m_hLoginHandle, stIn, stOut, 5000);
if (lRealHandle.longValue() != 0) {
System.out.println("RealPlayByDataType Succeed!");
} else {
System.err.printf("RealPlayByDataType Failed!Last Error[0x%x]\n", netsdk.CLIENT_GetLastError());
return;
}
try {
// 錄像時間 單位毫秒
Thread.sleep(20000);
} catch (InterruptedException e) {
e.printStackTrace();
}
// 停止預覽
netsdk.CLIENT_StopRealPlay(lRealHandle); // 必須停止拉流后，才會生成文件
}
public boolean logout() {
netsdk.CLIENT_StopRealPlayEx(this.m_hPlayHandleOne);
netsdk.CLIENT_StopRealPlayEx(this.m_hPlayHandleTwo);
if (m_hLoginHandle.longValue() == 0) {
return false;
}
boolean bRet = netsdk.CLIENT_Logout(m_hLoginHandle);
if (bRet) {
m_hLoginHandle.setValue(0);
}
for (int i = 0; i < m_stDeviceInfo.byChanNum; i++) {
chnlist.clear();
}
return true;
}
}
云臺控制
import com.netsdk.lib.NetSDKLib;
public class PtzControl {
public static NetSDKLib netsdk = NetSDKLib.NETSDK_INSTANCE;
public static boolean ptzControlStart(NetSDKLib.LLong m_hLoginHandle, Integer NET_PTZ_ControlType) {
return netsdk.CLIENT_DHPTZControlEx(m_hLoginHandle, 0, NET_PTZ_ControlType, 2, 4, 0, 0);
}
public static boolean ptzControlEnd(NetSDKLib.LLong m_hLoginHandle, Integer NET_PTZ_ControlType) {
return netsdk.CLIENT_DHPTZControlEx(m_hLoginHandle, 0, NET_PTZ_ControlType, 0, 0, 0, 1);
}
/**
* 向上
*/
public static boolean ptzControlUpEnd(NetSDKLib.LLong m_hLoginHandle) {
return netsdk.CLIENT_DHPTZControlEx(m_hLoginHandle, 0, NetSDKLib.NET_PTZ_ControlType.NET_PTZ_UP_CONTROL, 0, 0, 0, 1);
}
/**
* 向下
*/
public static boolean ptzControlDownEnd(NetSDKLib.LLong m_hLoginHandle) {
return netsdk.CLIENT_DHPTZControlEx(m_hLoginHandle, 0, NetSDKLib.NET_PTZ_ControlType.NET_PTZ_DOWN_CONTROL, 0, 0, 0, 1);
}
/**
* 向左
*/
public static boolean ptzControlLeftEnd(NetSDKLib.LLong m_hLoginHandle) {
return netsdk.CLIENT_DHPTZControlEx(m_hLoginHandle, 0, NetSDKLib.NET_PTZ_ControlType.NET_PTZ_LEFT_CONTROL, 0, 0, 0, 1);
}
/**
* 向右
*/
public static boolean ptzControlRightEnd(NetSDKLib.LLong m_hLoginHandle) {
return netsdk.CLIENT_DHPTZControlEx(m_hLoginHandle, 0, NetSDKLib.NET_PTZ_ControlType.NET_PTZ_RIGHT_CONTROL, 0, 0, 0, 1);
}
public static boolean ptzControl(NetSDKLib.LLong m_hLoginHandle, Integer NET_PTZ_ControlType) {
boolean b = netsdk.CLIENT_DHPTZControlEx(m_hLoginHandle, 0, NET_PTZ_ControlType, 0, 0, 0, 1);
return b;
}
}
錄像
import com.netsdk.lib.NetSDKLib;
import com.sun.jna.Pointer;
import lombok.extern.slf4j.Slf4j;
import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.util.Date;
@Slf4j
public class VideoControl {
public static void startRealPlay() throws FileNotFoundException {
DeviceLoginControl deviceLoginControl = new DeviceLoginControl();
deviceLoginControl.login("192.168.0.108", 37777, "admin", "admin123");
NetSDKLib.NET_IN_REALPLAY_BY_DATA_TYPE stIn = new NetSDKLib.NET_IN_REALPLAY_BY_DATA_TYPE();
stIn.emDataType = NetSDKLib.EM_REAL_DATA_TYPE.EM_REAL_DATA_TYPE_GBPS;
stIn.nChannelID = 0;
stIn.rType = NetSDKLib.NET_RealPlayType.NET_RType_Realplay;
File xfile = new File("a.dav");
FileOutputStream fos = new FileOutputStream(xfile);
stIn.cbRealData = new NetSDKLib.fRealDataCallBackEx() {
@Override
public void invoke(NetSDKLib.LLong lRealHandle, int dwDataType, Pointer pBuffer, int dwBufSize, int param, Pointer dwUser) {
// 指定回調流為PS格式
if (dwDataType == 1001) {
byte[] byteArray = pBuffer.getByteArray(0, dwBufSize);
try {
fos.write(byteArray);
} catch (IOException e) {
throw new RuntimeException(e);
}
}
}
};
stIn.dwUser = null;
stIn.szSaveFileName = "D:\\result.flv"; // 轉換后的裸H264碼流文件名
// 創建Stout對象
NetSDKLib.NET_OUT_REALPLAY_BY_DATA_TYPE stOut = new NetSDKLib.NET_OUT_REALPLAY_BY_DATA_TYPE();
// 預覽轉碼流保存
NetSDKLib.LLong lRealHandle = deviceLoginControl.netsdk.CLIENT_RealPlayByDataType(deviceLoginControl.m_hLoginHandle, stIn, stOut, 5000);
if (lRealHandle.longValue() != 0) {
System.out.println("RealPlayByDataType Succeed!");
} else {
System.err.printf("RealPlayByDataType Failed!Last Error[0x%x]\n", deviceLoginControl.netsdk.CLIENT_GetLastError());
}
}
public static void videoRecording(DeviceLoginControl deviceLoginControl) {
NetSDKLib.NET_IN_REALPLAY_BY_DATA_TYPE stIn = new NetSDKLib.NET_IN_REALPLAY_BY_DATA_TYPE();
stIn.emDataType = NetSDKLib.EM_REAL_DATA_TYPE.EM_REAL_DATA_TYPE_GBPS;
stIn.nChannelID = 0;
stIn.rType = NetSDKLib.NET_RealPlayType.NET_RType_Realplay;
stIn.dwUser = null;
log.info("設備登錄信息：{}", deviceLoginControl);
stIn.szSaveFileName = deviceLoginControl.getVideoStoragePath() + new SimpleDateFormat("YYYYMMddHHmmssSSS").format(new Date()) + ".flv"; // 轉換后的裸H264碼流文件名
// 創建Stout對象
NetSDKLib.NET_OUT_REALPLAY_BY_DATA_TYPE stOut = new NetSDKLib.NET_OUT_REALPLAY_BY_DATA_TYPE();
// 預覽轉碼流保存
NetSDKLib.LLong lRealHandle = deviceLoginControl.netsdk.CLIENT_RealPlayByDataType(deviceLoginControl.m_hLoginHandle, stIn, stOut, 5000);
if (lRealHandle.longValue() != 0) {
// System.out.println(Res.string().getAttach());
System.out.println("RealPlayByDataType Succeed!");
} else {
throw new RuntimeException("錄像失敗.{}");
}
try {
// 錄像時間 單位毫秒
Thread.sleep(deviceLoginControl.getCycleTime());
} catch (InterruptedException e) {
e.printStackTrace();
}
// 停止預覽
deviceLoginControl.netsdk.CLIENT_StopRealPlay(lRealHandle); // 必須停止拉流后，才會生成文件
}
public static void videoRecording(Long cycleTime, String savePath, DeviceLoginControl deviceLoginControl) {
NetSDKLib.NET_IN_REALPLAY_BY_DATA_TYPE stIn = new NetSDKLib.NET_IN_REALPLAY_BY_DATA_TYPE();
stIn.emDataType = NetSDKLib.EM_REAL_DATA_TYPE.EM_REAL_DATA_TYPE_GBPS;
stIn.nChannelID = 0;
stIn.rType = NetSDKLib.NET_RealPlayType.NET_RType_Realplay;
stIn.dwUser = null;
stIn.szSaveFileName = savePath + new SimpleDateFormat("YYYYMMddHHmmssSSS").format(new Date()) + ".flv"; // 轉換后的裸H264碼流文件名
// 創建Stout對象
NetSDKLib.NET_OUT_REALPLAY_BY_DATA_TYPE stOut = new NetSDKLib.NET_OUT_REALPLAY_BY_DATA_TYPE();
// 預覽轉碼流保存
NetSDKLib.LLong lRealHandle = deviceLoginControl.netsdk.CLIENT_RealPlayByDataType(deviceLoginControl.m_hLoginHandle, stIn, stOut, 5000);
if (lRealHandle.longValue() != 0) {
System.out.println("RealPlayByDataType Succeed!");
} else {
throw new RuntimeException("錄像失敗.{}");
}
try {
// 錄像時間 單位毫秒
Thread.sleep(cycleTime);
} catch (InterruptedException e) {
e.printStackTrace();
}
// 停止預覽
deviceLoginControl.netsdk.CLIENT_StopRealPlay(lRealHandle); // 必須停止拉流后，才會生成文件
}
public static void main(String[] args) throws FileNotFoundException {
DeviceLoginControl deviceLoginControl = new DeviceLoginControl();
deviceLoginControl.login("ip", 37777, "username", "password");
videoRecording(300000l, "", deviceLoginControl);
}
}
DeviceContext
import com.netsdk.api.DeviceLoginControl;
import com.netsdk.common.Res;
import com.netsdk.common.SavePath;
import com.netsdk.lib.NetSDKLib;
import com.sun.jna.Pointer;
import com.web.device.manage.entity.CameraDeviceEntity;
import com.web.device.manage.service.CameraDeviceService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;
import javax.annotation.PostConstruct;
import javax.annotation.Resource;
import javax.imageio.ImageIO;
import java.awt.image.BufferedImage;
import java.io.ByteArrayInputStream;
import java.io.File;
import java.io.IOException;
import java.util.List;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;
import java.util.stream.Collectors;
@Slf4j
@Component
public class DeviceContext {
@Resource
private CameraDeviceService cameraDeviceService;
private Map<String, DeviceLoginControl> deviceLogin = new ConcurrentHashMap<>();
/**
* 初始化登錄與重連
*/
@PostConstruct
private void init() {
List<CameraDeviceEntity> list = cameraDeviceService.list();
Map<String, List<CameraDeviceEntity>> collect = list.stream().collect(Collectors.groupingBy(CameraDeviceEntity::getIp));
for (CameraDeviceEntity cameraDevice : list) {
DeviceLoginControl deviceLoginControl = new DeviceLoginControl(new DisConnect(), new HaveReConnect());
if (loginRetry(cameraDevice, deviceLoginControl)) {
deviceLoginControl.setCycleTime(cameraDevice.getCycleTime());
deviceLoginControl.setVideoStoragePath(cameraDevice.getVideoStoragePath());
deviceLoginControl.setCleanCycle(cameraDevice.getCleanCycle());
deviceLogin.put(cameraDevice.getIp(), deviceLoginControl);
}
}
}
private boolean loginRetry(CameraDeviceEntity cameraDevice, DeviceLoginControl deviceLoginControl) {
boolean login = deviceLoginControl.login(cameraDevice.getIp(), cameraDevice.getTcpPort(), cameraDevice.getLoginName(), cameraDevice.getPassword());
if (!login) {
log.error("{},正在嘗試重連", cameraDevice.getIp());
int count = 0;
while (!deviceLoginControl.login(cameraDevice.getIp(), cameraDevice.getTcpPort(), cameraDevice.getLoginName(), cameraDevice.getPassword())) {
count++;
log.error("重連 第{}次，請檢查網絡或設備是否在線.{}", count, cameraDevice.getIp());
try {
Thread.sleep(2000);
} catch (InterruptedException e) {
log.error("重連等待異常.{}", cameraDevice.getIp());
e.printStackTrace();
}
if (count >= 5) {
log.error("長時間重連失敗，取消重連，請檢查網絡或設備是否在線.{}", cameraDevice.getIp());
return false;
}
}
log.info("重連成功.{}", cameraDevice.getIp());
}
return true;
}
@Scheduled(fixedDelay = 300000)
public void initDevice() {
List<CameraDeviceEntity> list = cameraDeviceService.list();
list.forEach(f -> {
if (!deviceLogin.containsKey(f.getIp()) && !deviceLogin.containsKey("DisConnect-" + f.getIp())) {
DeviceLoginControl deviceLoginControl = new DeviceLoginControl(new DisConnect(), new HaveReConnect());
if (loginRetry(f, deviceLoginControl)) {
deviceLoginControl.setCycleTime(f.getCycleTime());
deviceLoginControl.setVideoStoragePath(f.getVideoStoragePath());
deviceLoginControl.setCleanCycle(f.getCleanCycle());
deviceLogin.put(f.getIp(), deviceLoginControl);
}
}
});
}
public Map<String, DeviceLoginControl> getDeviceLogin() {
return deviceLogin;
}
public class fCaptureReceiveCB implements NetSDKLib.fSnapRev {
BufferedImage bufferedImage = null;
public void invoke(NetSDKLib.LLong lLoginID, Pointer pBuf, int RevLen, int EncodeType, int CmdSerial, Pointer dwUser) {
if (pBuf != null && RevLen > 0) {
String strFileName = SavePath.getSavePath().getSaveCapturePath();
System.out.println("strFileName = " + strFileName);
byte[] buf = pBuf.getByteArray(0, RevLen);
ByteArrayInputStream byteArrInput = new ByteArrayInputStream(buf);
try {
bufferedImage = ImageIO.read(byteArrInput);
if (bufferedImage == null) {
return;
}
ImageIO.write(bufferedImage, "jpg", new File(strFileName));
} catch (IOException e) {
e.printStackTrace();
}
}
}
}
public class DisConnect implements NetSDKLib.fDisConnect {
/**
* 斷線回調
*
* @param m_hLoginHandle
* @param pchDVRIP
* @param nDVRPort
* @param dwUser
*/
public void invoke(NetSDKLib.LLong m_hLoginHandle, String pchDVRIP, int nDVRPort, Pointer dwUser) {
System.out.printf("Device[%s] Port[%d] DisConnect!\n", pchDVRIP, nDVRPort);
if (deviceLogin.containsKey(pchDVRIP)) {
synchronized (deviceLogin) {
if (deviceLogin.containsKey(pchDVRIP)) {
DeviceLoginControl deviceLoginControl = deviceLogin.get(pchDVRIP);
deviceLogin.remove(pchDVRIP);
deviceLogin.put("DisConnect-" + pchDVRIP, deviceLoginControl);
}
}
}
Res.string().getDisConnectReconnecting();
}
}
private class HaveReConnect implements NetSDKLib.fHaveReConnect {
public void invoke(NetSDKLib.LLong m_hLoginHandle, String pchDVRIP, int nDVRPort, Pointer dwUser) {
System.out.printf("ReConnect Device[%s] Port[%d]\n", pchDVRIP, nDVRPort);
if (deviceLogin.containsKey("DisConnect-" + pchDVRIP)) {
synchronized (deviceLogin) {
if (deviceLogin.containsKey("DisConnect-" + pchDVRIP)) {
DeviceLoginControl deviceLoginControl = deviceLogin.get("DisConnect-" + pchDVRIP);
deviceLogin.remove("DisConnect-" + pchDVRIP);
deviceLogin.put(pchDVRIP, deviceLoginControl);
}
}
}
Res.string().getOnline();
}
}
}
調用的接口
package com.web.device.manage.controller;
import com.fasterxml.jackson.core.type.TypeReference;
import com.netsdk.api.DeviceLoginControl;
import com.netsdk.api.PtzControl;
import com.netsdk.lib.NetSDKLib;
import com.web.common.constant.WebConstant;
import com.web.common.entity.web.Failure;
import com.web.common.entity.web.Result;
import com.web.common.utils.BeanUtils;
import com.web.common.web.BaseController;
import com.web.device.manage.DeviceContext;
import com.web.device.manage.entity.CameraDeviceEntity;
import com.web.device.manage.model.response.CameraDeviceResponseModel;
import com.web.device.manage.service.CameraDeviceService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.cache.Cache;
import org.springframework.cache.CacheManager;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.web.bind.annotation.*;
import javax.annotation.Resource;
import javax.servlet.http.HttpServletResponse;
import java.io.*;
import java.net.URLEncoder;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;
import java.util.Map;
@Slf4j
@RestController
@RequestMapping(WebConstant.RequestMappingConstant.CAMERA_DEVICE)
public class CameraDeviceController extends BaseController {
@Resource
private CameraDeviceService cameraDeviceService;
@Resource
private RedisTemplate redisTemplate;
@Resource
private DeviceContext deviceContext;
@RequestMapping(WebConstant.RequestMappingConstant.LIST)
public Result list() {
return executor(e -> {
List<CameraDeviceEntity> cameraDevices = cameraDeviceService.list();
e.put("cameraDevices", BeanUtils.convertListToList(cameraDevices, new TypeReference<List<CameraDeviceResponseModel>>() {
}));
}, f -> Failure.instance(WebConstant.Code.ERROR, f.getMessage()));
}
@RequestMapping("/download")
public void download(@RequestBody Map<String, String> params, HttpServletResponse response) {
try {
// path是指想要下載的文件的路徑
File file = new File(params.get("path"));
log.info(file.getPath());
// 獲取文件名
String filename = file.getName();
// 獲取文件后綴名
String ext = filename.substring(filename.lastIndexOf(".") + 1).toLowerCase();
log.info("文件后綴名：" + ext);
// 將文件寫入輸入流
FileInputStream fileInputStream = new FileInputStream(file);
InputStream fis = new BufferedInputStream(fileInputStream);
byte[] buffer = new byte[fis.available()];
fis.read(buffer);
fis.close();
// 清空response
response.reset();
// 設置response的Header
response.setCharacterEncoding("UTF-8");
//Content-Disposition的作用：告知瀏覽器以何種方式顯示響應返回的文件，用瀏覽器打開還是以附件的形式下載到本地保存
//attachment表示以附件方式下載 inline表示在線打開 "Content-Disposition: inline; filename=文件名.mp3"
// filename表示文件的默認名稱，因?yàn)榫W(wǎng)絡傳輸只支持URL編碼的相關支付，因此需要將文件名URL編碼后進行傳輸,前端收到后需要反編碼才能獲取到真正的名稱
response.addHeader("Content-Disposition", "attachment;filename=" + URLEncoder.encode(params.containsKey("name") ? params.get("name") : new SimpleDateFormat("yyyy-MM-dd-HH-mm-ss").format(new Date()) + "." + ext, "UTF-8"));
// 告知瀏覽器文件的大小
response.addHeader("Content-Length", "" + file.length());
OutputStream outputStream = new BufferedOutputStream(response.getOutputStream());
response.setContentType("application/octet-stream");
outputStream.write(buffer);
outputStream.flush();
} catch (IOException ex) {
ex.printStackTrace();
}
}
@RequestMapping(WebConstant.RequestMappingConstant.SET_CLEAN_CYCLE)
public Result setCleanCycle(@PathVariable("cycle") Integer cycle) {
return executor(e -> {
redisTemplate.opsForValue().set("cleanCycle", cycle);
}, f -> Failure.instance(WebConstant.Code.ERROR, f.getMessage()));
}
@RequestMapping(WebConstant.RequestMappingConstant.GET_CLEAN_CYCLE)
public Result getCleanCycle() {
return executor(e -> {
Object cleanCycle = redisTemplate.opsForValue().get("cleanCycle");
if (cleanCycle == null) {
redisTemplate.opsForValue().set("cleanCycle", 7);
e.put("cycle", 7);
} else {
e.put("cycle", cleanCycle);
}
}, f -> Failure.instance(WebConstant.Code.ERROR, f.getMessage()));
}
@RequestMapping(WebConstant.RequestMappingConstant.PTZ_CONTROL)
public Result ptzControl(@RequestBody Map<String, Object> params) {
return executor(e -> {
Map<String, DeviceLoginControl> deviceLogin = deviceContext.getDeviceLogin();
DeviceLoginControl deviceLoginControl = deviceLogin.get(params.get("deviceIp"));
if (!PtzControl.ptzControlStart(deviceLoginControl.getM_hLoginHandle(), (Integer) params.get("type"))) {
throw new RuntimeException("控制失敗");
}
Thread.sleep(500);
if (!PtzControl.ptzControlEnd(deviceLoginControl.getM_hLoginHandle(), (Integer) params.get("type"))) {
throw new RuntimeException("控制失敗");
}
}, f -> Failure.instance(WebConstant.Code.ERROR, f.getMessage()));
}
}
注意
libs的加載地址要指定
文章來源：http://www.zghlxwxcb.cn/news/detail-808417.html
碼云地址
dahua-device文章來源地址http://www.zghlxwxcb.cn/news/detail-808417.html
到了這里，關于大華攝像頭windows、linuxJavaSDK開發使用的文章就介紹完了。如果您還想了解更多內容，請?jiān)谟疑辖撬阉鱐OY模板網以前的文章或繼續瀏覽下面的相關文章，希望大家以后多多支持TOY模板網！
