• ??統一使用 YOLOv5、YOLOv7 代碼框架，結合不同模塊來構建不同的YOLO目標檢測模型。
• 論文所提的Coordinate注意力很簡單，可以靈活地插入到經典的移動網絡中，而且?guī)缀鯖]有計算開銷。大量實驗表明，Coordinate注意力不僅有益于ImageNet分類，而且更有趣的是，它在下游任務（如目標檢測和語義分割）中表現也很好。本文結合目標檢測任務應用
• 應專欄讀者的要求，寫一篇關于YOLOv7+CA(Coordinate attention) 注意力機制的改進
• 重點：有不少讀者已經反映該專欄的改進 在自有數據集上有效漲點!!!同時COCO也能漲點

最新創新點改進推薦

-??統一使用 YOLO 代碼框架，結合不同模塊來構建不同的YOLO目標檢測模型。

?? 《芒果書》系列改進專欄內的改進文章，均包含多種模型改進方式，均適用于YOLOv3 、YOLOv4 、 YOLOR 、 YOLOX 、YOLOv5 、 YOLOv7 、 YOLOv8 改進（重點）?。?！

?? 專欄創新點教程 均有不少同學反應和我說已經在自己的數據集上有效漲點啦！！ 包括COCO數據集也能漲點

所有文章博客均包含 改進源代碼部分，一鍵訓練即可

?? 對應專欄訂閱的越早，就可以越早使用原創創新點去改進模型，搶先一步

芒果書 點擊以下鏈接 查看文章目錄詳情??

• ??????：一、CSDN原創《芒果改進YOLO高階指南》強烈改進漲點推薦！??推薦指數：??????????

• ??????：二、CSDN原創YOLO進階 | 《芒果改進YOLO進階指南》改進漲點推薦！??推薦指數：??????????

• ??????：三、CSDN獨家全網首發專欄 | 《目標檢測YOLO改進指南》改進漲點推薦！推薦指數：??????????

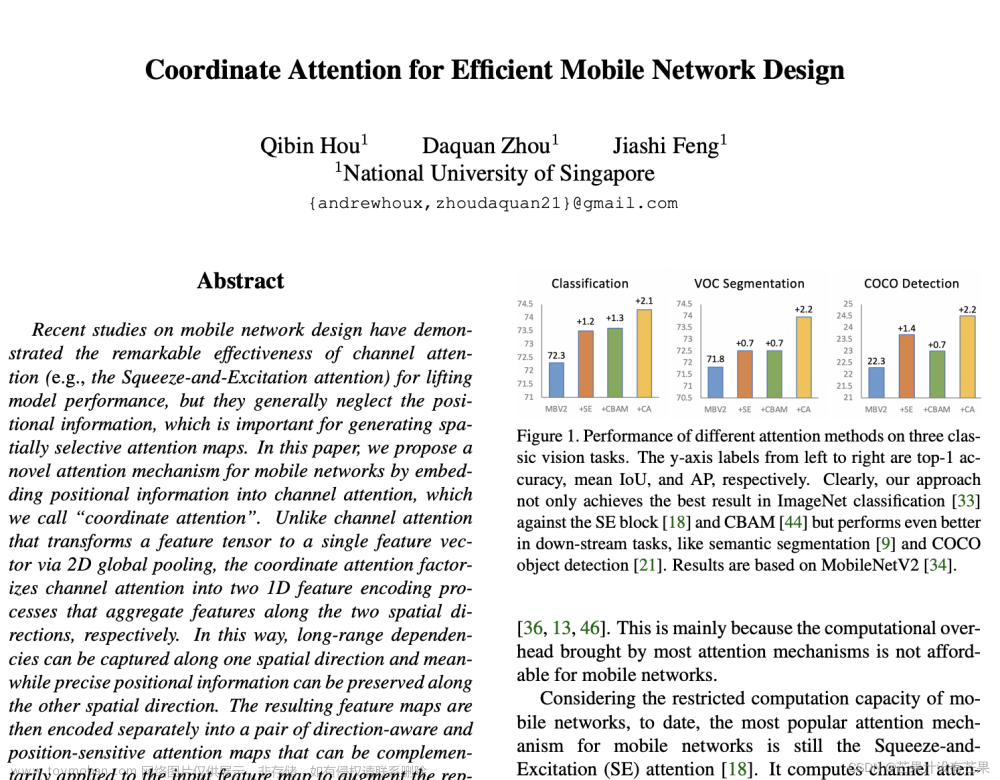

一、Coordinate Attention論文理論部分

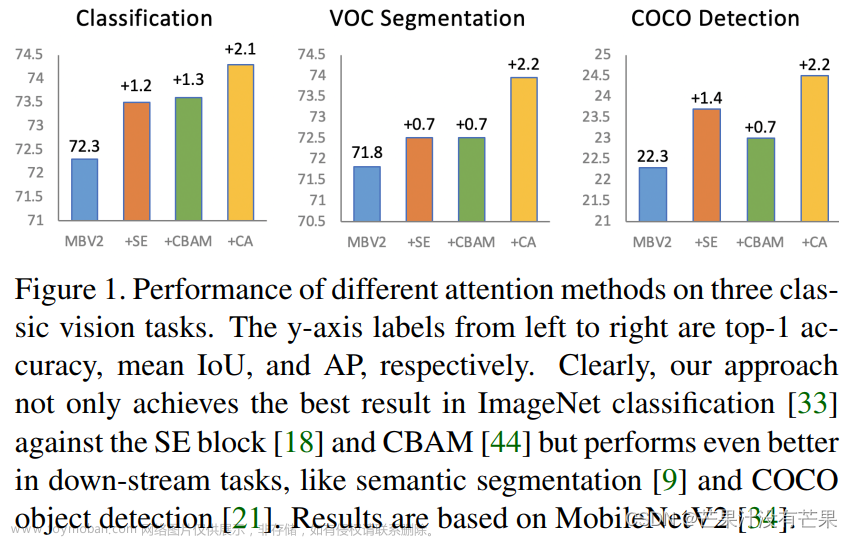

最近對移動網絡設計的研究已經證明了通道注意力的顯著效果（例如， Squeeze-and-Excitation 注意）用于提升模型性能，但它們通常忽略位置信息，這對于生成空間選擇性注意圖很重要。在本文中，我們提出了一種新的移動網絡注意機制，將位置信息嵌入到通道注意中，我們稱之為“坐標注意力”。與通過 2D 全局池化將特征張量轉換為單個特征向量的通道注意不同，坐標注意將通道注意分解為兩個 1D 特征編碼過程，分別沿兩個空間方向聚合特征。通過這種方式，可以沿一個空間方向捕獲遠程依賴關系，同時可以沿另一個空間方向保留精確的位置信息。然后將生成的特征圖分別編碼為一對方向感知和位置敏感的注意力圖，這些注意力圖可以互補地應用于輸入特征圖以增強感興趣對象的表示。我們的坐標注意力很簡單，可以靈活地插入經典的移動網絡，例如 MobileNetV2、MobileNeXt 和 EfficientNet，幾乎沒有計算開銷。大量實驗表明，我們的協調注意力不僅有利于 ImageNet 分類，而且更有趣的是，在對象檢測和語義分割等下游任務中表現得更好。代碼可在 大量實驗表明，我們的協調注意力不僅有利于 ImageNet 分類，而且更有趣的是，在對象檢測和語義分割等下游任務中表現得更好。代碼可在 大量實驗表明，我們的協調注意力不僅有利于 ImageNet 分類，而且更有趣的是，在對象檢測等下游任務中表現得更好。。

Coordinate Attention介紹

Coordinate Attention設計

圖 2：提議的坐標注意塊 ? 與經典 SE 通道注意塊的示意圖比較[18] (a) 和 CBAM [44] (b)。這里，“GAP”和“GMP”分別指的是全局平均池化和全局最大池化?！癤 Avg Pool”和“Y Avg Pool”分別指一維水平全局池和一維垂直全局池。

Coordinate Attention Block

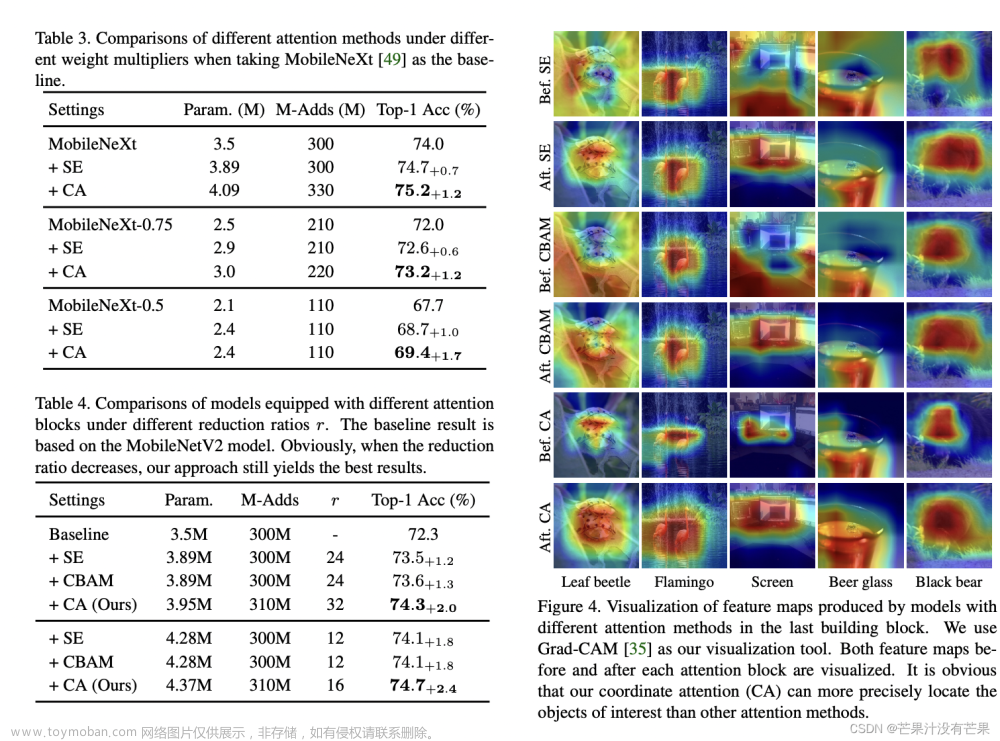

論文實驗

在上圖中，作者還將使用不同注意力方法的模型生成的特征圖進行了可視化。顯然，CA注意力比SE和CBAM更有助于目標的定位。

二、結合YOLOv7 改進代碼

2.1 網絡配置

1.增加YOLOv7_CA.yaml文件

# YOLOv7 ??, GPL-3.0 license
# parameters
nc: 80  # number of classes
depth_multiple: 1.0  # model depth multiple
width_multiple: 1.0  # layer channel iscyy multiple

# anchors
anchors:
  - [12,16, 19,36, 40,28]  # P3/8
  - [36,75, 76,55, 72,146]  # P4/16
  - [142,110, 192,243, 459,401]  # P5/32

# yolov7 backbone
backbone:
  # [from, number, module, args]
  [[-1, 1, Conv, [32, 3, 1]],  # 0
   [-1, 1, Conv, [64, 3, 2]],  # 1-P1/2
   [-1, 1, Conv, [64, 3, 1]],
   [-1, 1, Conv, [128, 3, 2]],  # 3-P2/4
   [-1, 1, C3, [128]],
   [-1, 1, Conv, [256, 3, 2]],
   [-1, 1, MP, []],
   [-1, 1, Conv, [128, 1, 1]],
   [-3, 1, Conv, [128, 1, 1]],
   [-1, 1, Conv, [128, 3, 2]],
   [[-1, -3], 1, Concat, [1]],  # 16-P3/8
   [-1, 1, Conv, [128, 1, 1]],
   [-2, 1, Conv, [128, 1, 1]],
   [-1, 1, Conv, [128, 3, 1]],
   [-1, 1, Conv, [128, 3, 1]],
   [-1, 1, Conv, [128, 3, 1]],
   [-1, 1, Conv, [128, 3, 1]],
   [[-1, -3, -5, -6], 1, Concat, [1]],
   [-1, 1, Conv, [512, 1, 1]],
   [-1, 1, MP, []],
   [-1, 1, Conv, [256, 1, 1]],
   [-3, 1, Conv, [256, 1, 1]],
   [-1, 1, Conv, [256, 3, 2]],
   [[-1, -3], 1, Concat, [1]],
   [-1, 1, Conv, [256, 1, 1]],
   [-2, 1, Conv, [256, 1, 1]],
   [-1, 1, Conv, [256, 3, 1]],
   [-1, 1, Conv, [256, 3, 1]],
   [-1, 1, Conv, [256, 3, 1]],
   [-1, 1, Conv, [256, 3, 1]],
   [[-1, -3, -5, -6], 1, Concat, [1]],
   [-1, 1, Conv, [1024, 1, 1]],
   [-1, 1, MP, []],
   [-1, 1, Conv, [512, 1, 1]],
   [-3, 1, Conv, [512, 1, 1]],
   [-1, 1, Conv, [512, 3, 2]],
   [[-1, -3], 1, Concat, [1]],
   [-1, 1, C3, [1024]],
   [-1, 1, Conv, [256, 3, 1]],
  ]

# yolov7 head by iscyy
head:
  [[-1, 1, SPPCSPC, [512]],
   [-1, 1, Conv, [256, 1, 1]],
   [-1, 1, nn.Upsample, [None, 2, 'nearest']],
   [31, 1, Conv, [256, 1, 1]],
   [[-1, -2], 1, Concat, [1]],
   [-1, 1, C3, [128]],
   [-1, 1, Conv, [128, 1, 1]],
   [-1, 1, nn.Upsample, [None, 2, 'nearest']],
   [18, 1, Conv, [128, 1, 1]],
   [[-1, -2], 1, Concat, [1]],
   [-1, 1, C3, [128]],
   [-1, 1, MP, []],
   [-1, 1, Conv, [128, 1, 1]],
   [-3, 1, CA, [128]],
   [-1, 1, Conv, [128, 3, 2]],
   [[-1, -3, 44], 1, Concat, [1]],
   [-1, 1, C3, [256]],
   [-1, 1, MP, []],
   [-1, 1, Conv, [256, 1, 1]],
   [-3, 1, Conv, [256, 1, 1]],
   [-1, 1, Conv, [256, 3, 2]],
   [[-1, -3, 39], 1, Concat, [1]],
   [-1, 3, C3, [512]],

# 檢測頭 -----------------------------
   [49, 1, RepConv, [256, 3, 1]],
   [55, 1, RepConv, [512, 3, 1]],
   [61, 1, RepConv, [1024, 3, 1]],

   [[62,63,64], 1, IDetect, [nc, anchors]],   # Detect(P3, P4, P5)
  ]

2.2 核心代碼

1.在common中新增以下代碼

class h_sigmoid(nn.Module):
    def __init__(self, inplace=True):
        super(h_sigmoid, self).__init__()
        self.relu = nn.ReLU6(inplace=inplace)

    def forward(self, x):
        return self.relu(x + 3) / 6

class h_swish(nn.Module):
    def __init__(self, inplace=True):
        super(h_swish, self).__init__()
        self.sigmoid = h_sigmoid(inplace=inplace)

    def forward(self, x):
        return x * self.sigmoid(x)
class CA(nn.Module):
    # Coordinate Attention for Efficient Mobile Network Design
    '''
        Recent studies on mobile network design have demonstrated the remarkable effectiveness of channel attention (e.g., the Squeeze-and-Excitation attention) for lifting
    model performance, but they generally neglect the positional information, which is important for generating spatially selective attention maps. In this paper, we propose a
    novel attention mechanism for mobile iscyy networks by embedding positional information into channel attention, which
    we call “coordinate attention”. Unlike channel attention
    that transforms a feature tensor to a single feature vector iscyy via 2D global pooling, the coordinate attention factorizes channel attention into two 1D feature encoding
    processes that aggregate features along the two spatial directions, respectively
    '''
    def __init__(self, inp, oup, reduction=32):
        super(CA, self).__init__()

        mip = max(8, inp // reduction)

        self.conv1 = nn.Conv2d(inp, mip, kernel_size=1, stride=1, padding=0)
        self.bn1 = nn.BatchNorm2d(mip)
        self.act = h_swish()

        self.conv_h = nn.Conv2d(mip, oup, kernel_size=1, stride=1, padding=0)
        self.conv_w = nn.Conv2d(mip, oup, kernel_size=1, stride=1, padding=0)


    def forward(self, x):
        identity = x

        n,c,h,w = x.size()
        pool_h = nn.AdaptiveAvgPool2d((h, 1))
        pool_w = nn.AdaptiveAvgPool2d((1, w))
        x_h = pool_h(x)
        x_w = pool_w(x).permute(0, 1, 3, 2)

        y = torch.cat([x_h, x_w], dim=2)
        y = self.conv1(y)
        y = self.bn1(y)
        y = self.act(y)

        x_h, x_w = torch.split(y, [h, w], dim=2)
        x_w = x_w.permute(0, 1, 3, 2)

        a_h = self.conv_h(x_h).sigmoid()
        a_w = self.conv_w(x_w).sigmoid()

        out = identity * a_w * a_h

        return out

然后在 在yolo.py中配置
找到./models/yolo.py文件下里的parse_model函數，將類名加入進去

for i, (f, n, m, args) in enumerate(d['backbone'] + d['head']):內部
對應位置 下方只需要增加 代碼

參考代碼

        elif m in [CA]:
            c1, c2 = ch[f], args[0]
            if c2 != no:  # if not outputss
                c2 = make_divisible(c2 * gw, 8)
            args = [c1, c2, *args[1:]]

2.3 運行

python train.py --cfg yolov7_CA.yaml

三、結合YOLOv5 改進代碼

3.1 網絡配置

1.增加YOLOv5_CA.yaml文件

# YOLOv5 ??, GPL-3.0 license

# Parameters
nc: 80  # number of classes
depth_multiple: 0.33  # model depth iscyy multiple
width_multiple: 0.50  # layer channel iscyy multiple
anchors:
  - [10,13, 16,30, 33,23]  # P3/8
  - [30,61, 62,45, 59,119]  # P4/16
  - [116,90, 156,198, 373,326]  # P5/32

# YOLOv5 v6.0 backbone
backbone:
  # [from, number, module, args]
  [[-1, 1, Conv, [64, 6, 2, 2]],  # 0-P1/2
   [-1, 1, Conv, [128, 3, 2]],  # 1-P2/4
   [-1, 3, C3, [128]],
   [-1, 1, Conv, [256, 3, 2]],  # 3-P3/8
   [-1, 6, C3, [256]],
   [-1, 1, Conv, [512, 3, 2]],  # 5-P4/16
   [-1, 9, C3, [512]],
   [-1, 1, Conv, [1024, 3, 2]],  # 7-P5/32
   [-1, 3, C3, [1024]],
   [-1, 1, SPPF, [1024, 5]],  # 9
  ]

# YOLOv5 v6.0 head
head:
  [[-1, 1, Conv, [512, 1, 1]],
   [-1, 1, nn.Upsample, [None, 2, 'nearest']],
   [[-1, 6], 1, Concat, [1]],  # cat backbone P4
   [-1, 3, C3, [512, False]],  # 13

   [-1, 1, Conv, [256, 1, 1]],
   [-1, 1, nn.Upsample, [None, 2, 'nearest']],
   [[-1, 4], 1, Concat, [1]],  # cat backbone P3
   [-1, 3, C3, [256, False]],  # 17 (P3/8-small)

   [-1, 1, Conv, [256, 3, 2]],
   [[-1, 14], 1, Concat, [1]],  # cat head P4
   [-1, 3, C3, [512, False]],  # 20 (P4/16-medium)

   [-1, 1, Conv, [512, 3, 2]],
   [[-1, 10], 1, Concat, [1]],  # cat head P5
   [-1, 3, C3, [1024, False]],  # 23 (P5/32-large)
   [-1, 1, CA, [1024]],

   [[17, 20, 24], 1, Detect, [nc, anchors]],  # Detect(P3, P4, P5)
  ]

3.2 核心代碼

1.在common中新增以下代碼

class h_sigmoid(nn.Module):
    def __init__(self, inplace=True):
        super(h_sigmoid, self).__init__()
        self.relu = nn.ReLU6(inplace=inplace)

    def forward(self, x):
        return self.relu(x + 3) / 6

class h_swish(nn.Module):
    def __init__(self, inplace=True):
        super(h_swish, self).__init__()
        self.sigmoid = h_sigmoid(inplace=inplace)

    def forward(self, x):
        return x * self.sigmoid(x)
class CA(nn.Module):
    # Coordinate Attention for Efficient Mobile Network Design
    '''
        Recent studies on mobile network design have demonstrated the remarkable effectiveness of channel attention (e.g., the Squeeze-and-Excitation attention) for lifting
    model performance, but they generally neglect the positional information, which is important for generating spatially selective attention maps. In this paper, we propose a
    novel attention mechanism for mobile iscyy networks by embedding positional information into channel attention, which
    we call “coordinate attention”. Unlike channel attention
    that transforms a feature tensor to a single feature vector iscyy via 2D global pooling, the coordinate attention factorizes channel attention into two 1D feature encoding
    processes that aggregate features along the two spatial directions, respectively
    '''
    def __init__(self, inp, oup, reduction=32):
        super(CA, self).__init__()

        mip = max(8, inp // reduction)

        self.conv1 = nn.Conv2d(inp, mip, kernel_size=1, stride=1, padding=0)
        self.bn1 = nn.BatchNorm2d(mip)
        self.act = h_swish()

        self.conv_h = nn.Conv2d(mip, oup, kernel_size=1, stride=1, padding=0)
        self.conv_w = nn.Conv2d(mip, oup, kernel_size=1, stride=1, padding=0)


    def forward(self, x):
        identity = x

        n,c,h,w = x.size()
        pool_h = nn.AdaptiveAvgPool2d((h, 1))
        pool_w = nn.AdaptiveAvgPool2d((1, w))
        x_h = pool_h(x)
        x_w = pool_w(x).permute(0, 1, 3, 2)

        y = torch.cat([x_h, x_w], dim=2)
        y = self.conv1(y)
        y = self.bn1(y)
        y = self.act(y)

        x_h, x_w = torch.split(y, [h, w], dim=2)
        x_w = x_w.permute(0, 1, 3, 2)

        a_h = self.conv_h(x_h).sigmoid()
        a_w = self.conv_w(x_w).sigmoid()

        out = identity * a_w * a_h

        return out

然后在 在yolo.py中配置
找到./models/yolo.py文件下里的parse_model函數，將類名加入進去

for i, (f, n, m, args) in enumerate(d['backbone'] + d['head']):內部
對應位置 下方只需要增加 代碼

參考代碼

        elif m in [CA]:
            c1, c2 = ch[f], args[0]
            if c2 != no:  # if not outputss
                c2 = make_divisible(c2 * gw, 8)
            args = [c1, c2, *args[1:]]

3.2 運行

python train.py --cfg yolov5_CA.yaml文章來源地址http://www.zghlxwxcb.cn/news/detail-449970.html
