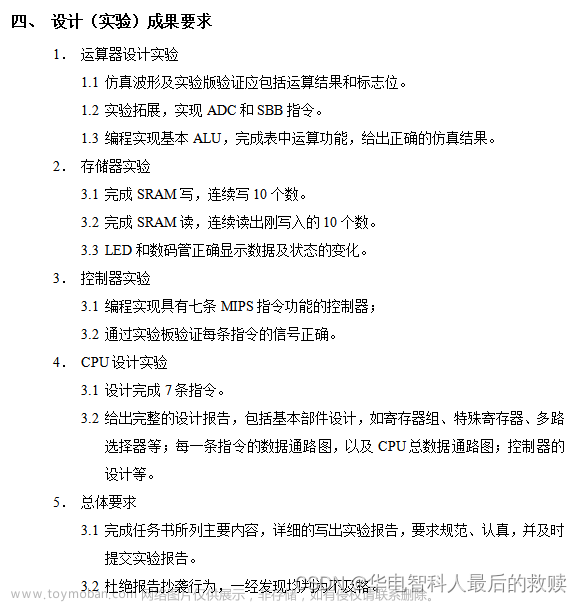

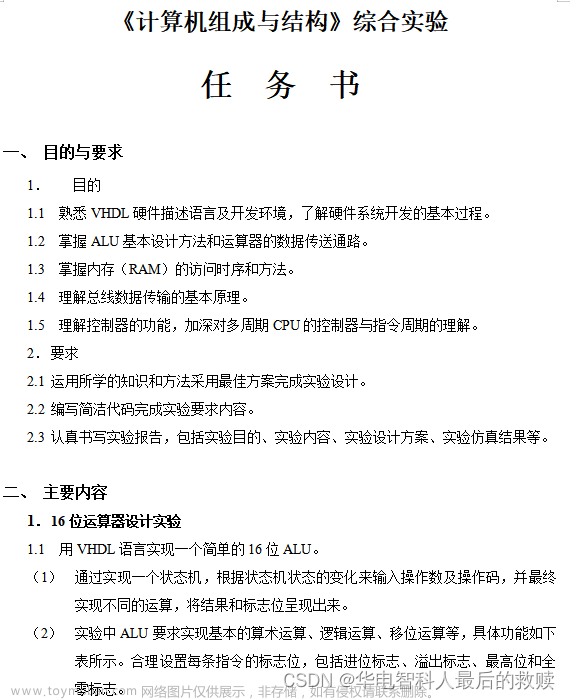

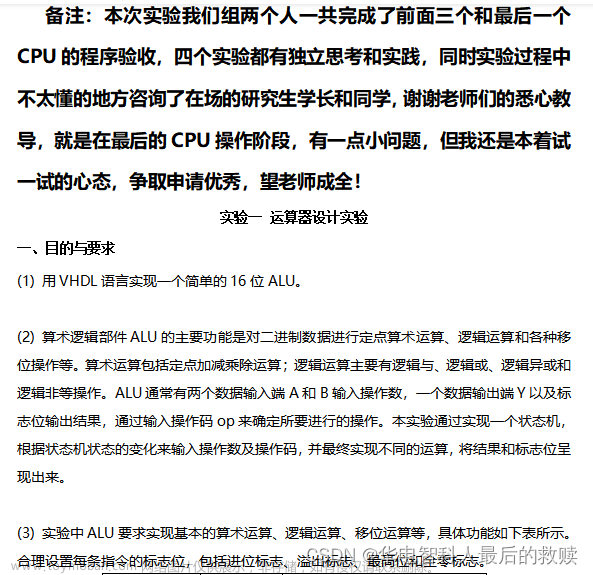

綜合性比較強的大實驗，先是在實驗室完成前面三個小實驗，最后再三個結合完成最后的16位CPU的設計，需要軟硬件結合一起。

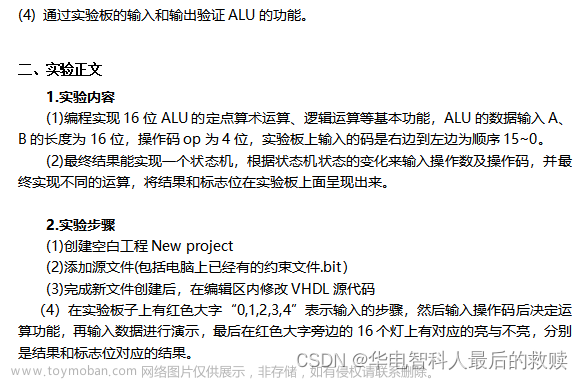

部分代碼如下：
process(RST, CLK)
begin
if RST = '0' then state <= 0; a<="0000000000000000"; b<="0000000000000000"; opCode<="0000"; output <= (others=>'0'); stateCnt <= not "0000000";
elsif CLK'event and CLK = '1' then
case state is
when 0 => state <= 1; a <= INPUT; stateCnt <= not "1000000";OUTPUT<=a;
when 1 => state <= 2; b <= INPUT; stateCnt <= not "1111001";OUTPUT<=b;
when 2 => state <= 3; opCode <= input(3 downto 0); stateCnt <= not "0100100"; OUTPUT <= input;
when 3 => state <= 4; OUTPUT<= y; stateCnt <= not "0110000";
when 4 => state <= 0; output<= outout; stateCnt <= not "0011001";
end case;
end if;
end process;
process(RST, opCode)
begin
cflag <= '0';
oflag <= '0';
zflag <= '0';
sflag <= '0';

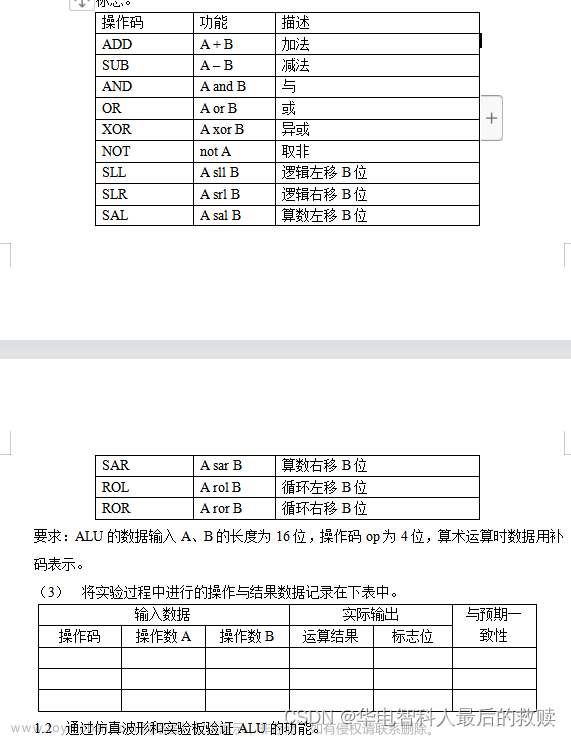

case opCode is
-- 加法
when "0000" => y<= a + b;
if(y = "0000000000000000") then
zflag <= '1';
end if;
if(a(15) = '1' and b(15) = '1') then
cflag <= '1';
if(y(15) = '0') then
oflag <= '1';
end if;
end if;
if(a(15) = '0' and b(15) = '0' and y(15) = '1') then
oflag <= '1';
end if;
if(y(15) = '1') then
sflag <= '1';
end if;
temp <= "1111111111111111" - a;
if(b > temp) then
cflag <= '1';
end if;
-- 減法
when "0001" => y<= a + (not b) + 1;
if(y(15) = '1') then
sflag <= '1';
end if;
if(y = "0000000000000000") then
zflag <= '1';
end if;
temp <= (not b) + 1;
if(a(15) = '1' and temp(15) = '1') then
cflag <= '1';
if(y(15) = '0') then
oflag <= '1';
end if;
end if;
if(a(15) = '0' and temp(15) = '0' and y(15) = '1') then
oflag <= '1';
end if;
if(a < b) then
cflag <= '1';
end if;

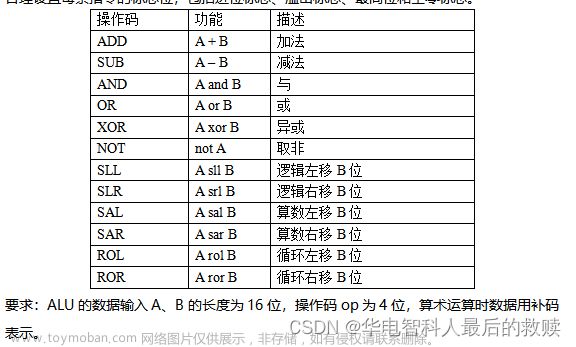

-- 加減，邏輯與，或，亦或，非，邏輯、循環、算數
when "0010" => y<= a and b;
if(y(15) = '1') then
sflag <= '1';
end if;
if(y = "0000000000000000") then
zflag <= '1';
end if;
when "0011" => y<= a or b;
if(y(15) = '1') then
sflag <= '1';
end if;
if(y = "0000000000000000") then
zflag <= '1';
end if;
when "0100" => y<= a xor b;
if(y(15) = '1') then
sflag <= '1';
end if;
if(y = "0000000000000000") then
zflag <= '1';
end if;
when "0101" => y<= not a;
if(y(15) = '1') then
sflag <= '1';
end if;
if(y = "0000000000000000") then
zflag <= '1';
end if;
-- 邏輯
when "0110" => y<= to_stdlogicvector(to_bitvector(a) sll conv_integer(b));
when "0111" => y<= to_stdlogicvector(to_bitvector(a) srl conv_integer(b));
-- 算數
when "1000" => y<= to_stdlogicvector(to_bitvector(a) sll conv_integer(b));
when "1001" => y<= to_stdlogicvector(to_bitvector(a) sra conv_integer(b));
-- 循環
when "1010" => y<= to_stdlogicvector(to_bitvector(a) rol conv_integer(b));
when "1011" => y<= to_stdlogicvector(to_bitvector(a) ror conv_integer(b));
-- when "0010" => y<= a + b + Cin;
-- when "0011" => y<= a - b - Cin;
3.實驗拓展（實現ADC和SBB指令，已經驗收通過）
-- ADC（帶進位加）
初始進位，A異或B異或C（三個里面有奇數個1則為1），向高一位的進位，AB或AC或BC（至少有兩個1則有進位）
when "1100" => y<= a + b+cflag;
if(y = "0000000000000000") then
zflag <= '1';
end if;
if(a(15) = '1' and b(15) = '1') then
cflag <= '1';
if(y(15) = '0') then
oflag <= '1';
end if;
end if;
if(a(15) = '0' and b(15) = '0' and y(15) = '1') then
oflag <= '1';
end if;
if(y(15) = '1') then
sflag <= '1';
end if;
temp <= "1111111111111111" - a;
if(b > temp) then
cflag <= '1';
end if;
-- SBB帶借位減（A-B-C）
初始借位，A異或B異或C（三個里面有奇數個1則為1），向高一位的借位，（BC均為1或BC有一個為1同時A為0就要借位即借位為1）
when "1101" => y<= a + (not b) -cflag;
if(y(15) = '1') then
sflag <= '1';
end if;
if(y = "0000000000000000") then
zflag <= '1';
end if;
temp <= (not b) + 1;
if(a(15) = '1' and temp(15) = '1') then
cflag <= '1';
if(y(15) = '0') then
oflag <= '1';
end if;
end if;
if(a(15) = '0' and temp(15) = '0' and y(15) = '1') then
oflag <= '1';
end if;
if(a < b) then
cflag <= '1';
end if;
when others=> y<="0000000000000000";
end case;
outout(15) <= oflag;
outout(14) <= cflag;
outout(13) <= zflag;
outout(12) <= sflag;
end process;

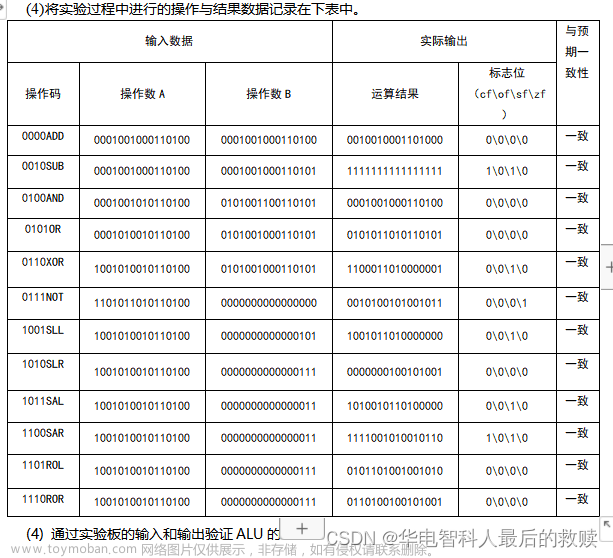

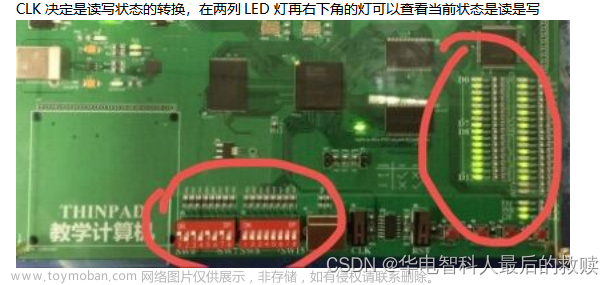

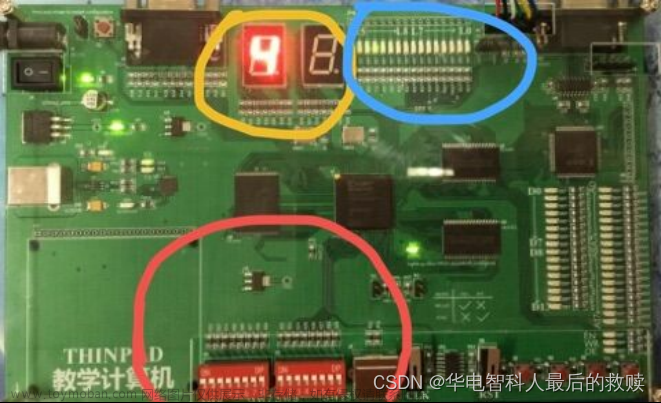

- 實驗截圖
黃色圈的地方是輸入步驟顯示
藍色圈的地方是標志位和結果顯示的LED燈
紅色圈的地方是輸入決定ALU功能的操作碼的地方，以及輸入計算的數據的地方。
（需要小心的是0~15是從左到右，撥上去是0，撥下來是1）
三、綜合實驗總結
1．實驗難點
(1) 在輸出標志位時,如何通過操作數和操作結果判斷標志位:
（2）在判斷進位標志位cFlags時，需要仔細考慮指令對標志位的影響和影響的原理，尤其是ADC指令和SBB指令，需要記錄每一位的進位并利用循環結構得到最終結果和進位標志位（類似全加器原理）。
（3）在判斷溢出標志位oFlags時，要靈活掌握操作數和運算結果之間符號位的變化與OF標志位的關系，以便正確設置標志位。
(4）在進行移位運算時,要將需要被移位的操作數(即A)的數據類型轉換為位矢量類型后才可以移位,將移位操作數轉換成整數。
2．心得體會
略
四、思考題

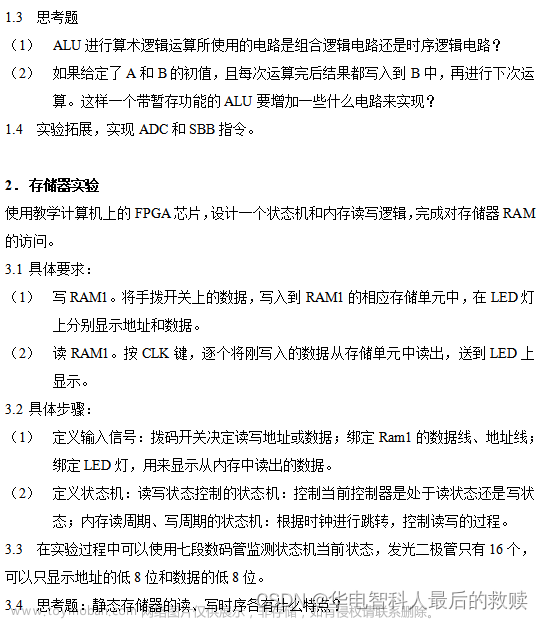

（1）ALU進行算術邏輯運算所使用的電路是組合邏輯電路還是時序邏輯電路？
答：組合邏輯電路，沒有記憶功能，此時刻輸入只取決于此時刻輸出。
（2）如果給定了A和B的初值，且每次運算完后結果都寫入到B中，再進行下次運算。這樣一個帶暫存功能的ALU要增加一些什么電路來實現？
答： 增加暫存器TMP和累加器AC。

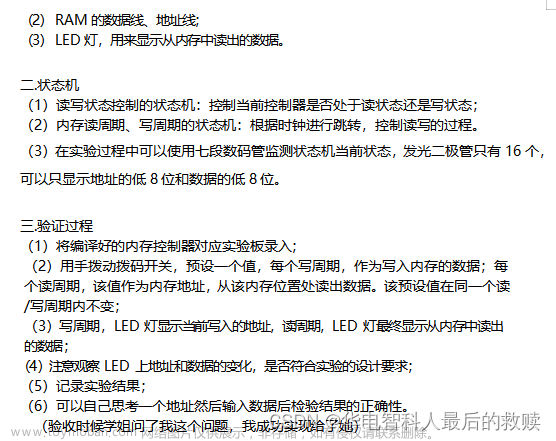

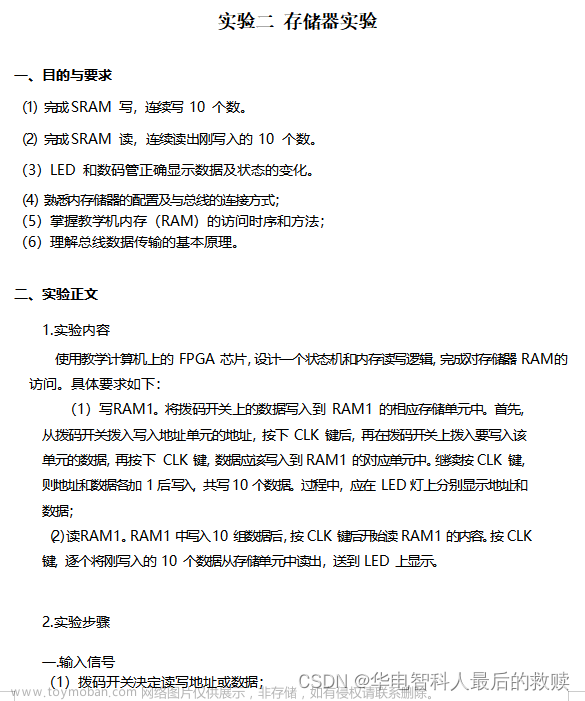

六.部分代碼展示
begin
process(RST,ctrl_r)
begin
if RST='0' then
ctrl_state<=N;
elsif rising_edge(ctrl_r)then
case ctrl_state is
when N=>
ctrl_state<=W;
when W=>
ctrl_state<=R;
when R=>
ctrl_state<=W;
end case;
end if;
end process;
process(RST,CLK,ctrl_state)
begin
if RST='0' then
tmp_data<=x"0000";
tmp_read_addr<=x"0000";
tmp_addr<=x"0000";
to_light<=x"0000";
RAM1_EN<='1';
RAM1_OE<='0';
RAM1_We<='0';
address_state<=waiting;
write_state<=waiting;
read_state<=waiting;
elsif rising_edge(CLK) then
case ctrl_state is
when N=>
ADDR<=Input_data;
SEG <= not"1000000";
tmp_addr<=Input_data;
tmp_read_addr<=Input_data;
when W=>
case write_state is
when waiting =>
address_state<=waiting ;
write_state<=start;
read_state<=waiting;
SEG <= not"1000000";
when start=>
--tmp_data<=Input_data;
ADDR<=tmp_addr;
DATA<=Input_data;
RAM1_EN<='0';
RAM1_OE<='1';
RAM1_We<='0';
SEG<=not"1111001";
write_state<=over;
when over=>
write_state<=waiting;
tmp_addr<=tmp_addr+1;
SEG <= not "0100100";
end case;
when r=>
case read_state is
when waiting=>
address_state<=waiting;
read_state<=start;
write_state<=waiting;
SEG <= not"1000000";
when start=>
RAM1_EN<='0';
RAM1_OE<='1';
RAM1_We<='1';
ADDR<=tmp_read_addr;
DATA<=(others=>'Z');
read_state<=read;
SEG<=not"1111001";
when read=>
RAM1_OE<='0';
RAM1_We<='1';
to_light<=DATA;
SEG <=not "0100100";
read_state<=over;
when over=>
SEG <= not"0110000";
read_state<=waiting;
tmp_read_addr<=tmp_read_addr+1;
end case;
end case;
end if;
dbc<='1';
end process;
light<=to_light;
end Behavioral;

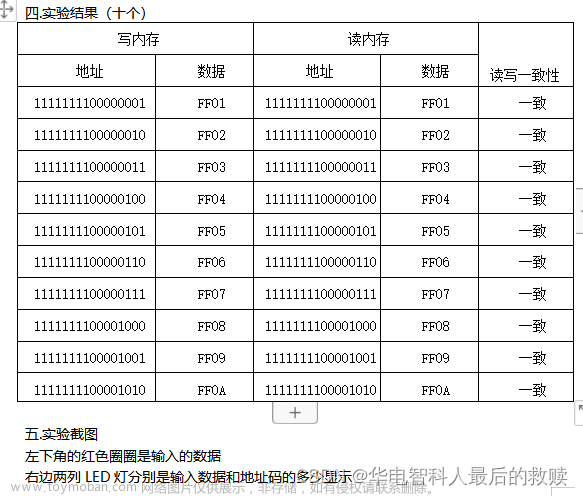

三、綜合實驗總結
1．實驗難點
略
2．心得體會
略
四、思考題

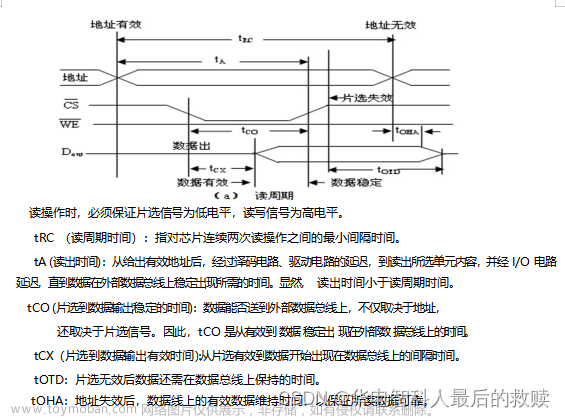

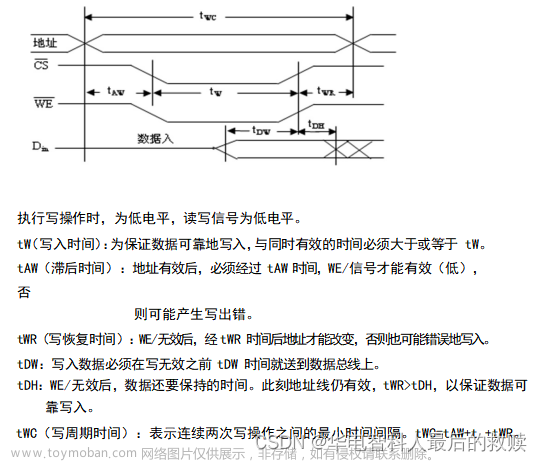

靜態存儲器的讀、寫時序各有什么特點？
答：如圖所示，特點如下：

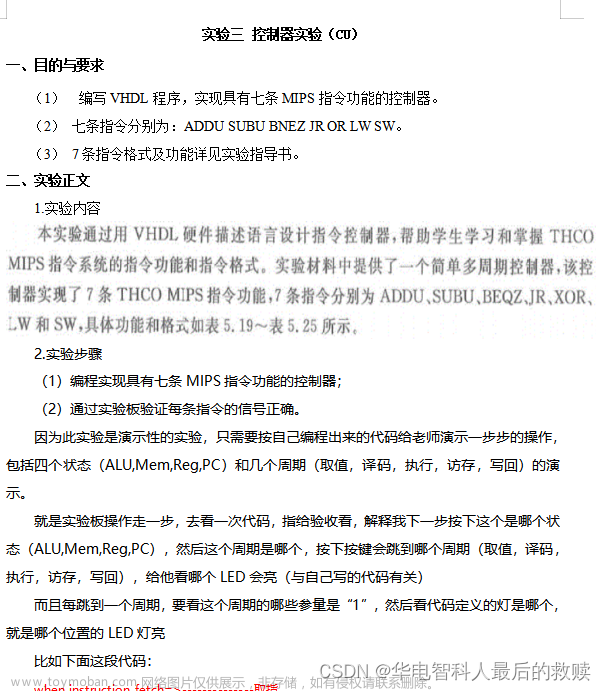

3．部分代碼展示

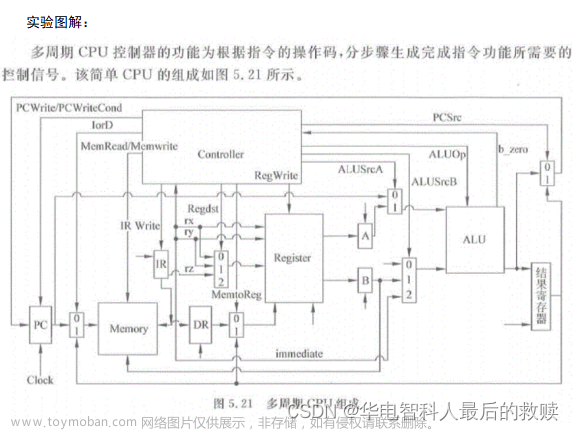

architecture Behavioral of unit is
signal bzero : std_logic;（布爾）------------------------
type shower_state is (PC,ALU,Mem,Reg);--------枚舉類型，有四種狀態---計數，加法器，內存，寄存器
signal shower : shower_state;--------------------
type controler_state is
(instruction_fetch,decode,execute,mem_control,write_reg);
signal state : controler_state;
signal PCWrite : std_logic;-------------------是否改寫PC
signal PCWriteCond : std_logic;--------------------轉移指令的條件
signal PCSource : std_logic;------------------------新的PC來源選擇
signal ALUOp : std_logic_vector(1 downto 0);-----ALU運算功能選擇
signal ALUSrcA : std_logic;---------------------------ALU源操作數A的選擇
signal ALUSrcB : std_logic_vector(1 downto 0);
signal MemRead : std_logic;--------------------------是否讀寄存器
signal MemWrite : std_logic;--------------------------是否寫寄存器
signal IRWrite : std_logic;-----------------------------寫IR
signal MemtoReg : std_logic_vector(1 downto 0);---寫入寄存器堆的數據來源選擇
signal RegWrite : std_logic_vector(2 downto 0);------寫寄存器控制
signal RegDst : std_logic_vector(1 downto 0);--------選擇目的寄存器
signal IorD : std_logic;-----------------存儲器地址來源
signal tmpb_zero : std_logic;
signal tmp_light : std_logic_vector(15 downto 0);
begin
light <= tmp_light;----燈
process(clk,rst,showCtrl)---------按鈕
begin
if rst='0' then
shower<=PC;
elsif rising_edge(showCtrl) then-----按
case shower is -----跳轉四個狀態
when PC=>
shower<=ALU;
when ALU=>
shower<=Mem;
when Mem=>
shower<=Reg;
when Reg=>
shower<=PC;
end case;
end if;
end process;
process(clk0,rst,state)
begin
if rst='0' then
tmp_light<=x"0000";
elsif rising_edge(clk0) then
case shower is
when PC=>
tmp_light(15 downto 0)<=x"0000";
tmp_light(15)<=PCWrite;
tmp_light(11)<=PCSource;
tmp_light(7)<=PCWriteCond;
when ALU=>
tmp_light(15 downto 0)<=x"0000";
tmp_light(15 downto 14)<=ALUOp;
tmp_light(11)<=ALUSrcA;
tmp_light(7 downto 6)<=ALUSrcB;
when Mem=>
tmp_light(15 downto 0)<=x"0000";
tmp_light(15)<=MemRead;
tmp_light(11)<=MemWrite;
tmp_light(7)<=IRWrite;
tmp_light(3 downto 2)<=MemtoReg;
when Reg=>
tmp_light(15 downto 0)<=x"0000";
tmp_light(15 downto 13)<=RegWrite;
tmp_light(11 downto 10)<=RegDst;
tmp_light(7)<=IorD;
end case;
end if;
end process;
process(rst,bzero_Ctrl)
begin
if rst = '0' then
bzero<='0';
elsif rising_edge (bzero_Ctrl) then
if bzero <= '0' then
bzero <= '1';
tmpb_zero<='0';
elsif bzero = '1' then
tmpb_zero<='1';
bzero<='0';
end if;
end if;
end process;
process (bzero)
begin
if bzero = '1' then
PCWriteCond<='1';
elsif bzero = '0' then
PCWriteCond<='0';
end if;
end process;
process (rst,clk)
begin
if(rst = '0') then
state<=instruction_fetch;
IorD<='0';
IRWrite<='0';
MemRead<='0';
MemWrite<='0';
MemtoReg<="00";
ALUOp<="00";
ALUSrcA<='0';
ALUSrcB<="00";
PCWrite<='0';
PCSource<='0';
RegDst<="00";
RegWrite<="000";
elsif rising_edge (clk) then
case state is

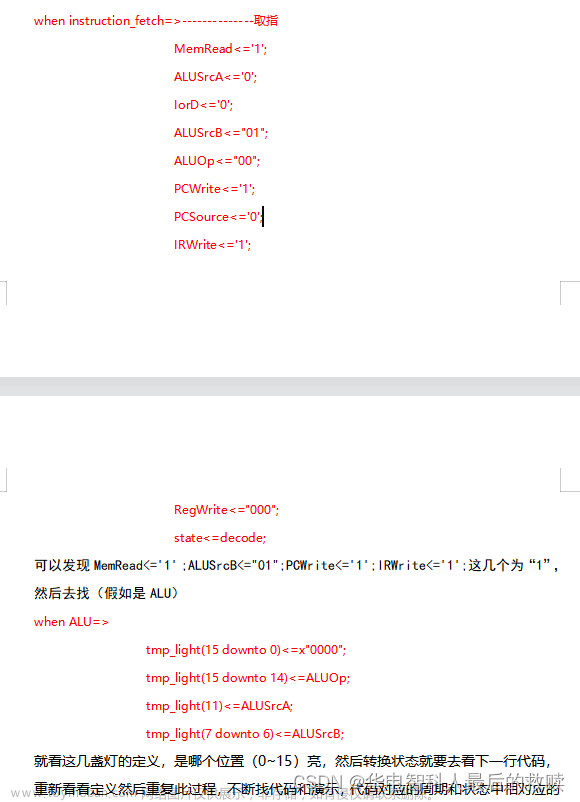

when instruction_fetch=>--------------取指
MemRead<='1';
ALUSrcA<='0';
IorD<='0';
ALUSrcB<="01";
ALUOp<="00";
PCWrite<='1';
PCSource<='0';
IRWrite<='1';
RegWrite<="000";
state<=decode;
when decode=>----------------譯碼
IRWrite<='0';
MemRead<='0';
PCWrite<='0';
ALUSrcA<='0';
ALUSrcB<="10";
ALUOp<="00";
state<=execute;
when execute=>---------------執行
case instructions(15 downto 11) is
when "00100" =>
ALUSrcA<='1';
ALUOp<="10";
PCSource<='1';
state<=instruction_fetch;
when "10011"=>
ALUSrcA<='1';
ALUSrcB<="10";
ALUOp<="00";
state<=mem_control;
when "11011"=>
ALUSrcA<='1';
ALUSrcB<="10";
ALUOp<="00";
state<=mem_control;
when "11100" =>
case instructions (1 downto 0) is
when "01" => -----addu
ALUSrcA<='1';
ALUSrcB<="00";
ALUOp<="00";
when "11" => -----subu
ALUSrcA<='1';
ALUSrcB<="00";
ALUOp<="01";
when others =>
null;
end case;
state <=write_reg;
when "11101" =>
case instructions(4 downto 0) is
when "01101" =>
ALUSrcA<='1';
ALUSrcB<="00";
ALUOp<="10";
state<=write_reg;
when "00000" =>
case instructions(7 downto 5) is
when "000"=>
ALUSrcA<='1';
ALUOp<="10";
PCWrite<= '1';
PCSource <= '0';
state<= instruction_fetch;
when others=>
null;
end case;
when others =>
null;
end case;
when others=>
null;
end case;
when mem_control =>---------------訪存
PCWrite<= '0';
RegWrite<="000";
case instructions(15 downto 11) is
when "10011" =>
MemRead <= '1';
IorD <= '1';
state <= write_reg;
when "11011" =>
MemWrite <= '1';
IorD <= '1';
state <= write_reg;
when others =>
null;
end case;
when write_reg=>----------------寫入
Memwrite <= '0';
MemRead <= '0';
case instructions (15 downto 11) is
when "10011" =>
RegDst <= "10";
RegWrite <= "001";
MemtoReg <= "01";
when "11011" =>
MemWrite <= '0';
IorD <= '0';
when "11100" =>
case instructions (1 downto 0) is
when "01" =>
RegDst<= "01";
RegWrite<= "001";
MemtoReg <= "00";
when "11" =>
RegDst <="01";
RegWrite<= "001";
MemtoReg <= "00";
when others =>
null;
end case;
when "11101" =>
case instructions (4 downto 0) is
when "01101"=>
RegDst <="00";
RegWrite<= "001";
MemtoReg <= "00";
when others =>
null;
end case;
when others=>
null;
end case;
state <= instruction_fetch;
end case;
end if;
end process;
end Behavioral;
三.執行階段實現的七條指令
七條指令分別為：ADDU SUBU BNEZ JR OR LW SW。
前面演示了取值，譯碼，到執行的時候，需要參考實驗書上的131頁到133頁的七條指令格式的設計，這時候?qū)?yīng)的代碼會有指令的指示跳轉到各自的指令執行的地方，LED燈會有各自的位置亮起。至于指令的數據通路和解釋，將在下一個實驗CPU中給出。
下面給出實驗時候執行階段手寫的指令：

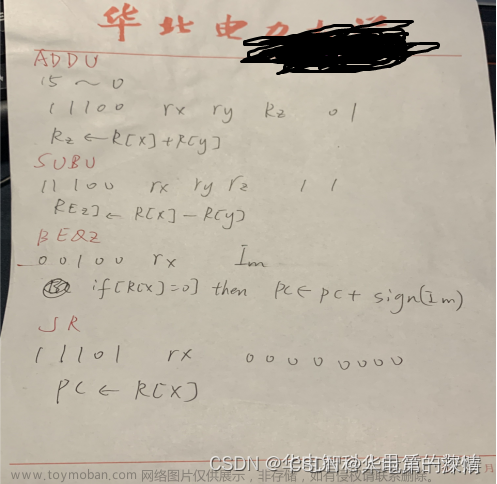

算機組成與結構綜合大實驗驗優：16位運算器設計實驗、存儲器實驗、控制器實驗、16位CPU設計實驗](https://imgs.yssmx.com/Uploads/2023/04/401565-23.png)

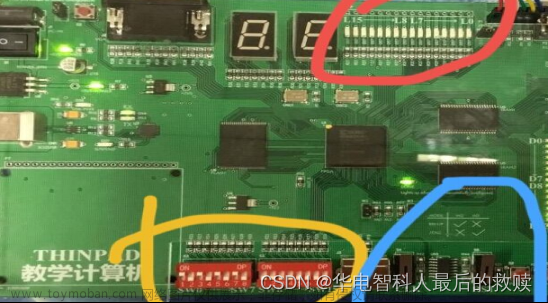

四.實驗截圖
紅色部分是演示時候LED燈亮的位置
黃色部分是執行階段輸入的指令代表的數字
藍色部分三個按鈕有重置，跳轉狀態（ALU,Mem,Reg,PC），跳轉周期（取值，譯碼，執行，訪存，寫回）的功能，即CLK,RST和右邊第一個紅色小按鈕。
四、綜合實驗總結
1．實驗難點
略
2．心得體會
略

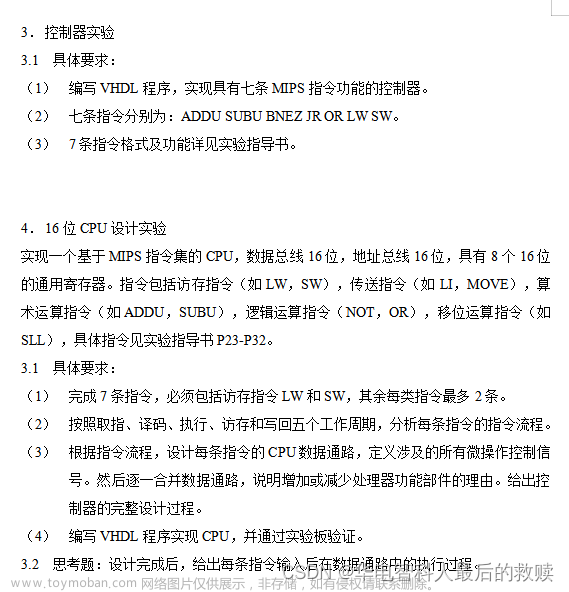

實驗四 16位CPU設計實驗
一、目的與要求
實現一個基于MIPS指令集的CPU，數據總線16位，地址總線16位，具有8個16位的通用寄存器。指令包括訪存指令（如LW，SW），傳送指令（如LI，MOVE），算術運算指令（如ADDU，SUBU），邏輯運算指令（NOT，OR），移位運算指令（如SLL），具體指令見實驗指導書P23-P32。
具體要求：
（1）完成7條指令，必須包括訪存指令LW和SW，其余每類指令最多2條。
（2）按照取指、譯碼、執行、訪存和寫回五個工作周期，分析每條指令的指令流程。
（3）根據指令流程，設計每條指令的CPU數據通路，定義涉及的所有微操作控制信號。然后逐一合并數據通路，說明增加或減少處理器功能部件的理由。給出控制器的完整設計過程。
（4）編寫VHDL程序?qū)崿F(xiàn)CPU，并通過實驗板驗證。
二、實驗正文
1.實驗內容

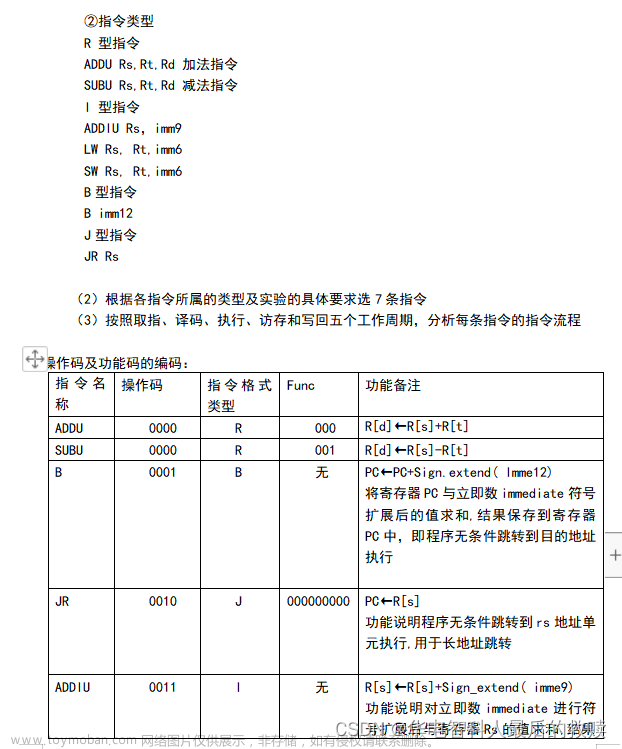

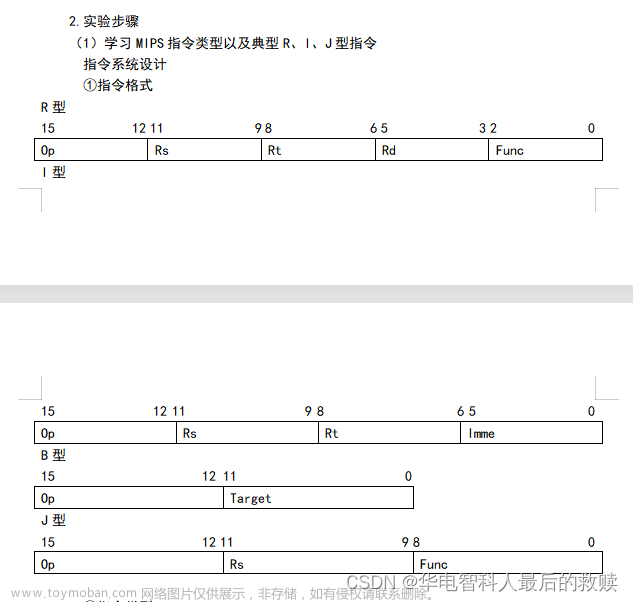

（1）實現一個基于MIPS指令集的多周期CPU
（2）設計完成7條指令，必須包括訪存指令LW和SW，其余每類指令最多2條
（3）按照取指、譯碼、執行、訪存和寫回五個工作周期，分析每條指令的指令流程
（4）根據指令流程，設計每條指令的CPU數據通路，定義涉及的所有微操作控制信號。然后逐一合并數據通路，說明增加或減少處理器功能部件的理由。給出控制器的完整設計過程。
（5）編寫VHDL程序?qū)崿F(xiàn)CPU，并通過實驗板驗證。

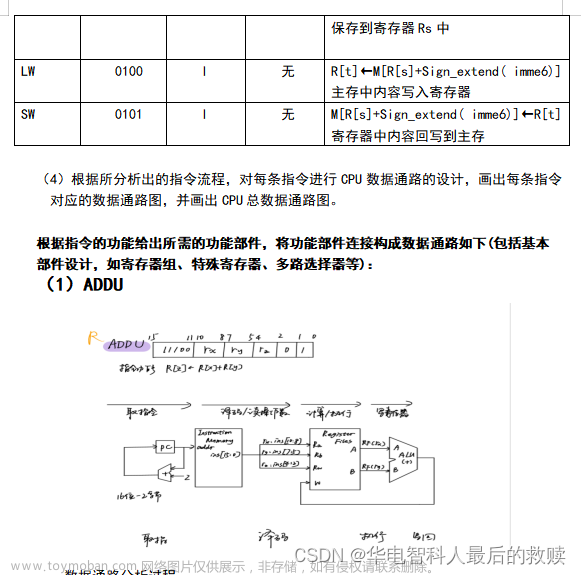

（6）給出完整的設計報告，包括基本部件設計，如寄存器組、特殊寄存器、多路選擇器等；每一條指令的數據通路圖，以及CPU總數據通路圖；控制器的設計等。

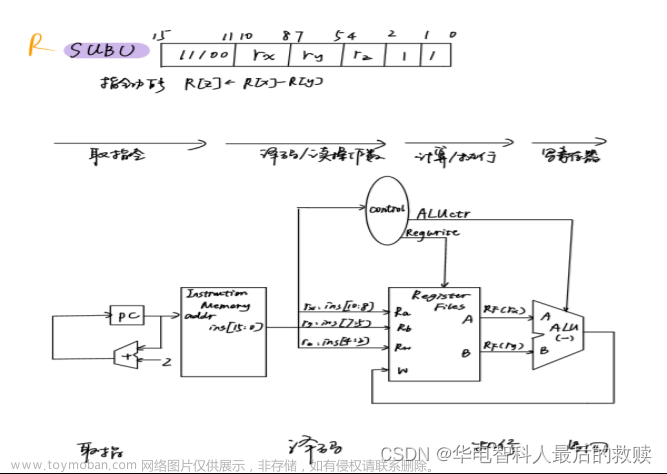

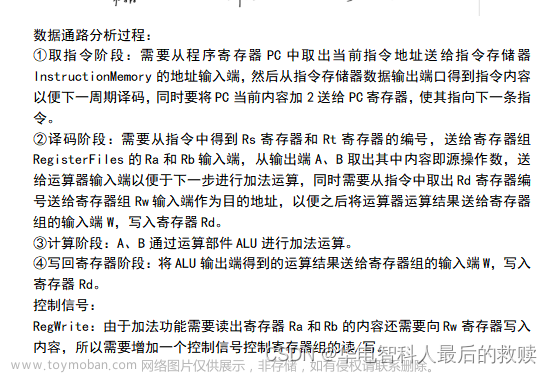

（2）SUBU
數據通路分析過程：
①取指令階段：需要從程序寄存器PC中取出當前指令地址送給指令存儲器InstructionMemory的地址輸入端，然后從指令存儲器數據輸出端口得到指令內容以便下一周期譯碼，同時要將PC當前內容加2送給PC寄存器，使其指向下一條指令。
②譯碼階段：需要從指令中得到Rs寄存器和Rt寄存器的編號，送給寄存器組RegisterFiles的Ra和Rb輸入端，從輸出端A、B取出其中內容即源操作數，送給運算器輸入端以便于下一步進行減法運算，同時需要從指令中取出Rd寄存器編號送給寄存器組Rw輸入端作為目的地址，以便之后將運算器運算結果送給寄存器組的輸入端W，寫入寄存器Rd。
③計算階段：A、B通過運算部件ALU進行減法運算。
④寫回寄存器階段：將ALU輸出端得到的運算結果送給寄存器組的輸入端W，寫入寄存器Rd。

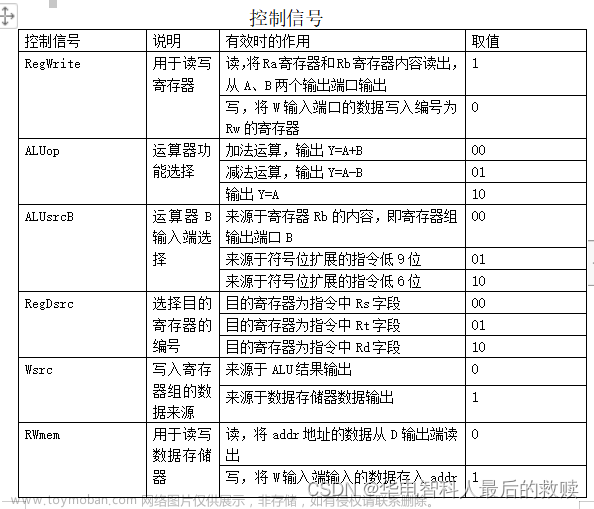

控制信號：
RegWrite：由于加法功能需要讀出寄存器Ra和Rb的內容還需要向Rw寄存器寫入內容，所以需要增加一個控制信號控制寄存器組的讀/寫。
ALUop：由于ALU的功能有多種，故增加一個控制信號控制ALU功能選擇。

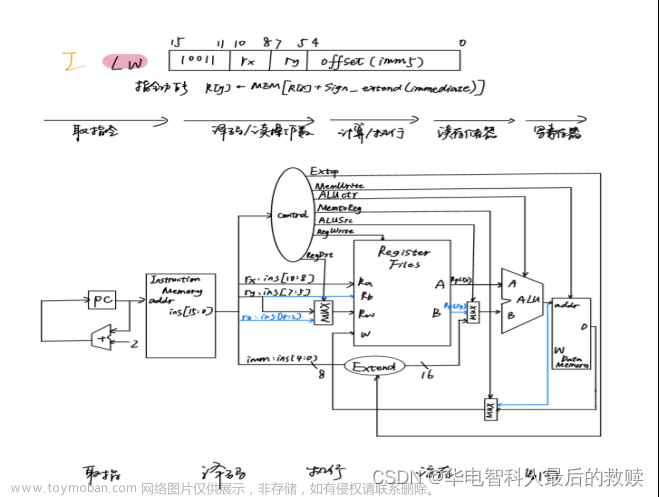

（3）LW
①取指令階段：需要從程序寄存器PC中取出當前指令地址送給指令存儲器InstructionMemory的地址輸入端，然后從指令存儲器數據輸出端口得到指令內容以便下一周期譯碼，同時將PC加2送給PC，指向下一條指令。
②譯碼階段：需要從指令中的第11位到第9位取出Rs寄存器編號送給寄存器組Ra輸入端，從輸出端A取出Rs寄存器內容送給運算器A輸入端，第5位到第0位取出6位立即數經過擴展送給運算器B輸入端，同時還要將指令第8位到第6位送給Rw輸入端作為目的寄存器編號。
③計算階段：A、B輸入的內容送給運算器進行加法運算。
④讀存儲器：ALU輸出內容送給數據存儲器地址輸入端addr。
⑤寫回寄存器：數據存儲器數據輸出端D送給寄存器組數據寫入端W，根據Rw中存放的Rt寄存器編號，將數據寫入Rt寄存器。
控制信號：
ALUop：控制選擇ALU功能為加法。
ALUsrcB：控制選擇運算器B輸入端的內容來源，本指令中來源于指令低6位擴展到16位后的立即數。
RegWrite：控制寄存器組的讀出和寫入。
RegDsrc：控制選擇寄存器組Rw輸入端的來源，本指令中應選擇指令8到6位作為寄存器編號。
Jump、PCsource：控制下一條指令的轉移。
RWmem：控制數據存儲器的讀出和寫入。
Wsrc：控制選擇寫入寄存器的數據來源，本指令來源于數據存儲器輸出數據。

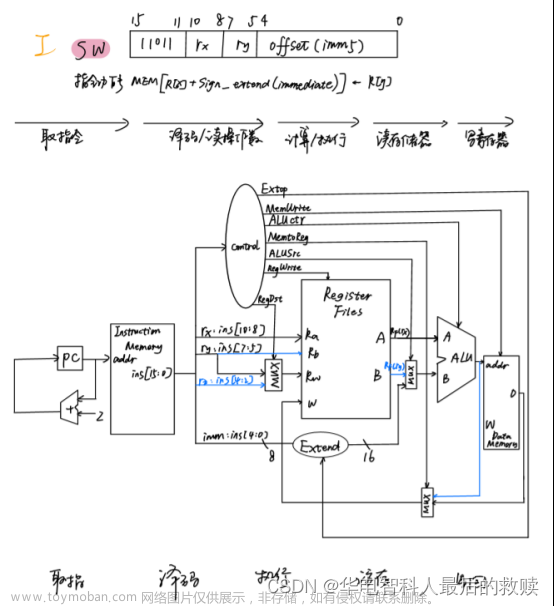

（4）SW
數據通路分析過程：
①取指令階段：需要從程序寄存器PC中取出當前指令地址送給指令存儲器InstructionMemory的地址輸入端，然后從指令存儲器數據輸出端口得到指令內容以便下一周期譯碼，同時將PC加2送給PC，指向下一條指令。
②譯碼階段：需要從指令中的第11位到第9位取出Rs寄存器編號送給寄存器組Ra輸入端，從輸出端A取出Rs寄存器內容送給運算器A輸入端，第5位到第0位取出6位立即數經過擴展送給運算器B輸入端，同時還要將指令第8位到第6位送給Rb輸入端作為輸入數據寄存器編號。
③計算階段：運算器對A、B輸入的內容進行加法運算，運算后結果為目的地址需要送給數據存儲器地址端addr。
④讀寄存器：寄存器組B輸出端內容輸入數據，將其送給數據存儲器數據輸入端W。
⑤寫回存儲器：將數據存儲器輸入端W的數據寫入目的地址addr。
控制信號：
ALUop：控制選擇ALU功能為加法。
ALUsrcB：控制選擇運算器B輸入端的內容來源，本指令中來源于指令低6位擴展到16位后的立即數。
RegWrite：控制寄存器組的讀出和寫入。
Jump、PCsource：控制下一條指令的轉移。
RWmem：控制數據存儲器的讀出和寫入。
Wsrc：控制選擇寫入寄存器的數據來源，本指令來源于數據存儲器輸出數據。

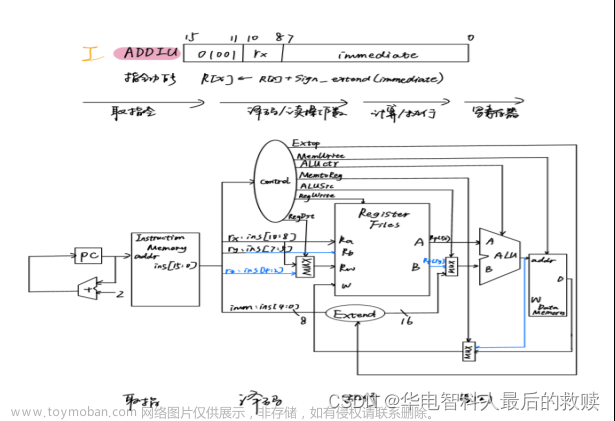

（5）ADDIU
數據通路分析過程：
①取指令階段：需要從程序寄存器PC中取出當前指令地址送給指令存儲器InstructionMemory的地址輸入端，然后從指令存儲器數據輸出端口得到指令內容以便下一周期譯碼，同時將PC加2送給PC，指向下一條指令。
②譯碼階段：需要從指令中的第11位到第9位取出Rs寄存器編號送給寄存器組Ra輸入端，從輸出端A取出Rs寄存器內容送給運算器A輸入端，第11位到第9位取出Rs寄存器編號還要送給Rw輸入端作為運算后的目的寄存器編號，取出指令的8到0位送給運算器B輸入端，。
③計算階段：A、B輸入的內容送給運算器進行加法運算。
④寫回階段：ALU輸出內容送給寄存器組W輸入端寫回Rw所存的編號的寄存器。
控制信號：
ALUop：控制選擇ALU功能為加法。
ALUsrcB：控制選擇運算器B輸入端的內容來源，本指令中來源于指令低9位擴展到16位后的立即數。
RegWrite：控制寄存器組的讀出和寫入。
RegDsrc：控制選擇寄存器組Rw輸入端的來源，本指令中應選擇指令11到9位作為寄存器編號。
Jump、PCsource：控制下一條指令的轉移。

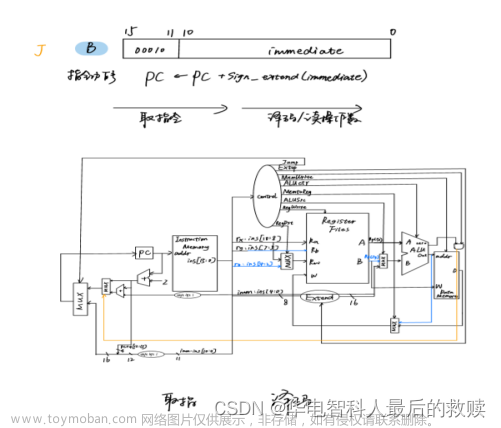

（6）B
數據通路分析過程：
①取指令階段：需要從程序寄存器PC中取出當前指令地址送給指令存儲器InstructionMemory的地址輸入端，然后從指令存儲器數據輸出端口得到指令內容以便下一周期譯碼。
②譯碼階段：需要從指令中的低12位擴展成16位與當前PC內容相加送回PC。
控制信號：

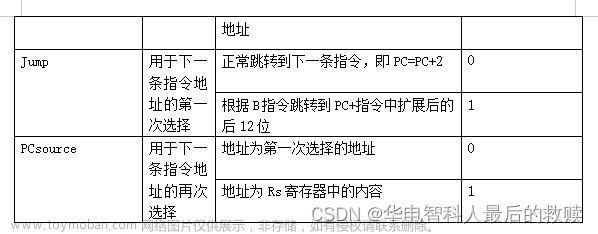

Jump：由于PC的值和當前執行指令有關，故增加一個控制信號Jump通過一個多路選擇器控制PC的選擇。
（7）JR
數據通路分析過程：
①取指令階段：需要從程序寄存器PC中取出當前指令地址送給指令存儲器InstructionMemory的地址輸入端，然后從指令存儲器數據輸出端口得到指令內容以便下一周期譯碼。
②譯碼階段：需要從指令中的第11位到第9位取出Rs寄存器編號送給寄存器組Ra輸入端，從輸出端A取出Rs寄存器內容以便下一步根據指令功能通過運算器運算。
③計算階段：寄存器取出的內容送給ALU輸入端A，通過ALUop控制信號選擇直接輸出源操作數A的功能。
④寫回階段：ALU輸出內容送給PC。
控制信號：
RegWrite：由于需要將讀出Rs寄存器內容，所以需要一個寄存器讀信號，將內容從寄存器組輸出端口A輸出。
ALUop：此指令運算器需要新的功能，故用ALUop信號控制運算器功能選擇，這條指令中應該選擇輸出Y=A。
PCsource：PC的內容又增加了新的選擇，故需要一個OPsource信號通過多路選擇器控制PC的輸入選擇。

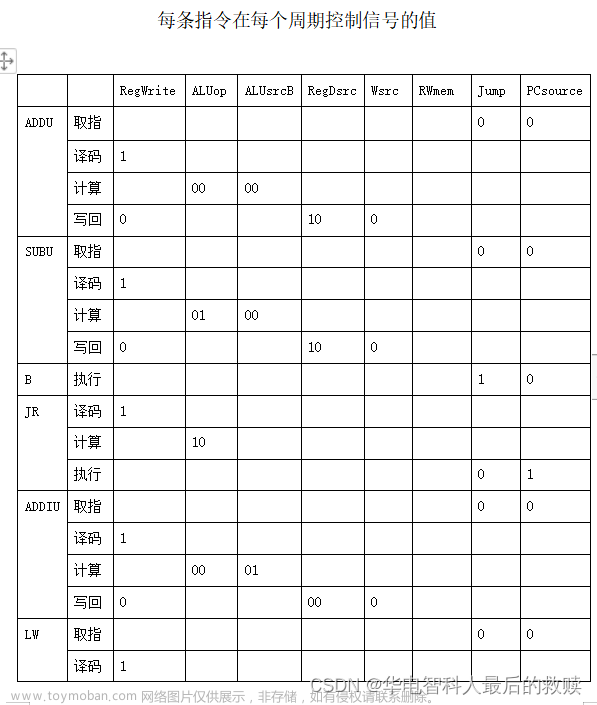

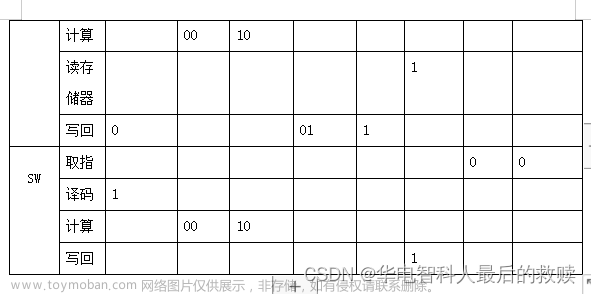

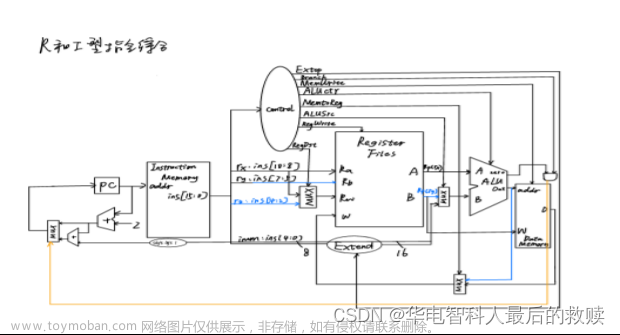

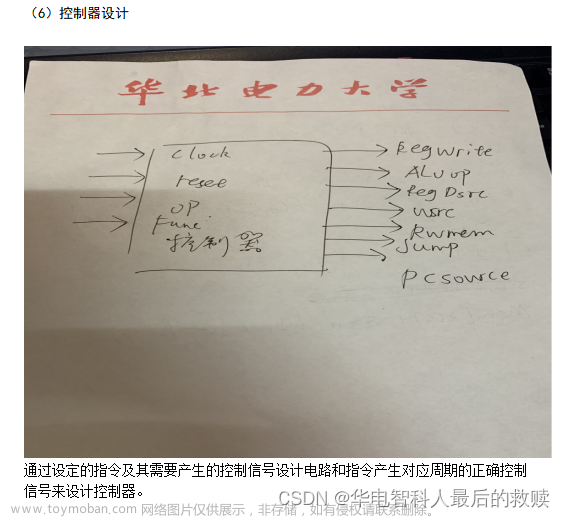

（5）根據CPU總數據通路圖設計控制器：列出控制信號表格以及每條指令在每個指令周期控制信號的值，完成控制器完整設計：
（7）部分代碼展示
process(RST,showCtrl) -----狀態轉換
begin
if RST = '0' then
State_show <= PC;
stateCnt_L <= "0111001";
elsif showCtrl'event and showCtrl = '1' then
case State_show is
when PC =>
stateCnt_L <= "0000110";
State_show <= ALU;
when ALU =>
stateCnt_L <= "1011011";
State_show <= M;
when M =>
stateCnt_L <= "1001111";
State_show <= REG;
when REG =>
stateCnt_L <= "1100110";
State_show <= PC;
end case;
end if;
end process;
......
when decode =>
stateCnt_R <= "1011011";
AluSrcA <= '0';
ALUSrcB <= "10";
ALUOp <= "00";
MemRead <= '0';
IRWrite <= '0';
PcWrite <= '0';
CU_state <= execute;
case instruction(15 downto 11) is
when "11100" =>
rx <= instruction(10 downto 8);
ry <= instruction(7 downto 5);
rz <= instruction(4 downto 2);
when "00100" => --BEQZ
rx <= instruction(10 downto 8);
IMD <= instruction(7 downto 0);
when "11101" =>
case instruction(4 downto 0) is
when "00000" => --JR
rx <= instruction(10 downto 8);
when "01110" => --XOR
rx <= instruction(10 downto 8);
ry <= instruction(7 downto 5);
when others =>
null;
end case;
when "10011" => --LW
rx <= instruction(10 downto 8);
ry <= instruction(7 downto 5);
im <= instruction(4 downto 0);
when "11011" => --SW
rx <= instruction(10 downto 8);
ry <= instruction(7 downto 5);
im <= instruction(4 downto 0);
when others =>
null;
end case;
when execute =>
stateCnt_R <= "1001111";
control_state <= 0;
case instruction(15 downto 11) is
when "11100" =>
if instruction(1 downto 0) = "01" then --ADDU
ALUSrcA <= '1';
ALUSrcB <= "00";
ALUOp <= "00";
elsif instruction(1 downto 0) = "11" then --SUBU
ALUSrcA <= '1';
ALUSrcB <= "00";
ALUOp <= "01";
end if;
CU_state <= write_reg;
when "00100" => --BEQZ
ALUSrcA <= '1';
ALUOp <= "10";
PCSource <= '1';
CU_state <= instruction_fetch;
when "11101" =>
case instruction(4 downto 0) is
when "00000" => --JR
ALUSrcA <= '1';
ALUOp <= "10";
PcWrite <= '1';
PCSource <= '0';
CU_state <= instruction_fetch;
when "01110" => --XOR
ALUSrcA <= '1';
ALUSrcB <= "00";
ALUOp <= "10";
CU_state <= write_reg;
when others =>
null;
end case;
when "10011" => --LW
ALUSrcA <= '1';
ALUSrcB <= "10";
ALUOp <= "00";
CU_state <= write_reg;
when "11011" => --SW
ALUSrcA <= '1';
ALUSrcB <= "10";
ALUOp <= "00";
CU_state <= write_reg;
when others =>
null;
end case;
when mem_control =>
stateCnt_R <= "1100110";
case instruction(15 downto 11) is
when "10011" => --LW
RegWrite <= "000";
MemRead <= '1';
IorD <= '1';
PcWrite <= '0';
case control_state is
when 2 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
DATA(4 downto 0) <= DATA(4 downto 0) + im;
tmp_read_addr <= DATA;
CU_state <= mem_control;
control_state <= 3;
when 3 =>
ADDR <= tmp_read_addr;
DATA <= (others=>'Z');
RAM1_OE<='0';
RAM1_WE<='1';
CU_state <= write_reg;
control_state <= 4;
when others =>
null;
end case;
when "11011" => --SW
RegWrite <= "000";
MemWrite <= '1';
IorD <= '1';
PcWrite <= '0';
case control_state is
when 4 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
DATA(4 downto 0) <= DATA(4 downto 0) + im;
tmp_addr <= DATA;
CU_state <= mem_control;
control_state <= 5;
when 5 =>
ADDR <= tmp_addr;
DATA <= tmp_data;
RAM1_WE<='0';
RAM1_OE<='1';
CU_state <= write_reg;
control_state <= 0;
when others =>
null;
end case;
when others =>
null;
end case;
when write_reg =>
stateCnt_R <= "1101101";
case instruction(15 downto 11) is
when "11100" =>
case instruction(1 downto 0) is
when "01" => --ADDU
RegDst <= "01";
RegWrite <= "001";
MemtoReg <= "00";
MemRead <= '0';
MemWrite <= '0';
case control_state is
when 0 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_addr1 <= "0000000000000000";
tmp_read_addr1 <="0000000000000000";
tmp_read_addr1(2 downto 0) <= rx;
CU_state <= write_reg;
control_state <= 1;
when 1 =>
ADDR <= tmp_read_addr1;
DATA <= (others=>'Z');
RAM1_OE<='0';
RAM1_WE<='1';
CU_state <= write_reg;
control_state <= 2;
when 2 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_data1 <= DATA;
tmp_read_addr1<="0000000000000000";
tmp_read_addr1(2 downto 0) <= ry;
CU_state <= write_reg;
control_state <= 3;
when 3 =>
ADDR <= tmp_read_addr1;
DATA <= (others=>'Z');
RAM1_OE<='0';
RAM1_WE<='1';
CU_state <= write_reg;
control_state <= 4;
when 4 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_data1 <= DATA + tmp_data1;
tmp_addr1(2 downto 0) <= rz;
CU_state <= write_reg;
control_state <= 5;
when 5 =>
ADDR <= tmp_addr1;
DATA <= tmp_data1;
RAM1_WE<='0';
RAM1_OE<='1';
CU_state<=instruction_fetch;
control_state <= 0;
when others =>
null;
end case;
when "11" => --SUBU
RegDst <= "01";
RegWrite <= "001";
MemtoReg <= "00";
MemRead <= '0';
MemWrite <= '0';
case control_state is
when 0 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_addr<="0000000000000000";
tmp_read_addr<="0000000000000000";
tmp_read_addr(2 downto 0) <= rx;
CU_state <= write_reg;
control_state <= 1;
when 1 =>
ADDR <= tmp_read_addr;
DATA <= (others=>'Z');
RAM1_OE<='0';
RAM1_WE<='1';
CU_state <= write_reg;
control_state <= 2;
when 2 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_data <= DATA;
tmp_read_addr<="0000000000000000";
tmp_read_addr(2 downto 0) <= ry;
CU_state <= write_reg;
control_state <= 3;
when 3 =>
ADDR <= tmp_read_addr;
DATA <= (others=>'Z');
RAM1_OE<='0';
RAM1_WE<='1';
CU_state <= write_reg;
control_state <= 4;
when 4 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_data <= tmp_data - DATA;
tmp_addr(2 downto 0) <= rz;
CU_state <= write_reg;
control_state <= 5;
when 5 =>
ADDR <= tmp_addr;
DATA <= tmp_data;
RAM1_WE<='0';
RAM1_OE<='1';
CU_state <=instruction_fetch;
control_state <= 0;
when others =>
null;
end case;
when others =>
null;
end case;
when "11101" => --XOR
RegDst <= "00";
RegWrite <= "001";
MemtoReg <= "00";
MemRead <= '0';
MemWrite <= '0';
case control_state is
when 0 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_addr <= "0000000000000000";
tmp_read_addr <="0000000000000000";
tmp_read_addr(2 downto 0) <= rx;
CU_state <= write_reg;
control_state <= 1;
when 1 =>
ADDR <= tmp_read_addr;
DATA <= (others=>'Z');
RAM1_OE<='0';
RAM1_WE<='1';
CU_state <= write_reg;
control_state <= 2;
when 2 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_data <= DATA;
tmp_read_addr <="0000000000000000";
tmp_read_addr(2 downto 0) <= ry;
CU_state <= write_reg;
control_state <= 3;
when 3 =>
ADDR <= tmp_read_addr;
DATA <= (others=>'Z');
RAM1_OE<='0';
RAM1_WE<='1';
CU_state <= write_reg;
control_state <= 4;
when 4 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_data <= tmp_data xor DATA;
tmp_addr(2 downto 0) <= rx;
CU_state <= write_reg;
control_state <= 5;
when 5 =>
ADDR <= tmp_addr;
DATA <= tmp_data;
RAM1_WE<='0';
RAM1_OE<='1';
CU_state <= instruction_fetch;
control_state <= 0;
when others =>
null;
end case;
when "10011" => --LW
RegDst <= "10";
RegWrite <= "001";
MemtoReg <= "01";
MemRead <= '0';
MemWrite <= '0';
case control_state is
when 0 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_addr <= "0000000000000000";
tmp_read_addr <="0000000000000000";
tmp_read_addr(2 downto 0) <= rx;
CU_state <= write_reg;
control_state <= 1;
when 1 =>
ADDR <= tmp_read_addr;
DATA <= (others=>'Z');
RAM1_OE<='0';
RAM1_WE<='1';
CU_state <= mem_control;
control_state <= 2;
when 4 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_data <= DATA;
tmp_addr(2 downto 0) <= ry;
CU_state <= write_reg;
control_state <= 5;
when 5 =>
ADDR <= tmp_addr;
DATA <= tmp_data;
RAM1_WE<='0';
RAM1_OE<='1';
CU_state <= instruction_fetch;
control_state <= 0;
when others =>
null;
end case;
when "11011" => --SW
MemRead <= '0';
MemWrite <= '0';
IorD <= '0';
case control_state is
when 0 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_addr <= "0000000000000000";
tmp_read_addr <="0000000000000000";
tmp_read_addr(2 downto 0) <= ry;
CU_state <= write_reg;
control_state <= 1;
when 1 =>
ADDR <= tmp_read_addr;
DATA <= (others=>'Z');
RAM1_OE<='0';
RAM1_WE<='1';
CU_state <= write_reg;
control_state <= 2;
when 2 =>
RAM1_EN <= '0';
RAM1_OE <= '1';
RAM1_WE <= '1';
tmp_data <= DATA;
tmp_read_addr <="0000000000000000";
tmp_read_addr(2 downto 0) <= rx;
CU_state <= write_reg;
control_state <= 3;
when 3 =>
ADDR <= tmp_read_addr;
DATA <= (others=>'Z');
RAM1_OE<='0';
RAM1_WE<='1';
CU_state <= mem_control;
control_state <= 4;
when others =>
null;
end case;
when others =>
null;
end case;
end case;
end if;
end process;
三、綜合實驗總結
1．實驗難點
略
2．心得體會
略
四.思考題
設計完成后，給出每條指令輸入后在數據通路中的執行過程。
如上面實驗步驟給出來的數據通路圖，七條指令的都已經給出執行過程。文章來源：http://www.zghlxwxcb.cn/news/detail-401565.html
XXX申請驗優！文章來源地址http://www.zghlxwxcb.cn/news/detail-401565.html
到了這里，關于計算機組成與結構綜合大實驗驗優：16位運算器設計實驗、存儲器實驗、控制器實驗、16位CPU設計實驗的文章就介紹完了。如果您還想了解更多內容，請?jiān)谟疑辖撬阉鱐OY模板網以前的文章或繼續瀏覽下面的相關文章，希望大家以后多多支持TOY模板網！
