在本文中，我們將了解如何通過連接Apache Kafka代理到MongoDB Atlas并使用CDC解決方案將數據從MongoDB Atlas流式傳輸?shù)絊ingleStore Kai。同時，我們還將使用Metabase創建一個簡單的SingleStore Kai分析儀表板。
本文末尾附上所使用的代碼本文的出處鏈接。
https://github.com/VeryFatBoy/adtech-kafka-cdc
簡介
CDC是一種追蹤數據庫或系統中發生的更改的方法。SingleStore現在提供與MongoDB配合使用的CDC解決方案。
為了演示CDC解決方案，我們將使用Kafka代理將數據流式傳輸?shù)組ongoDB Atlas集群，并使用CDC管道將數據從MongoDB Atlas傳播到SingleStore Kai。我們還將使用Metabase創建一個簡單的分析儀表板。

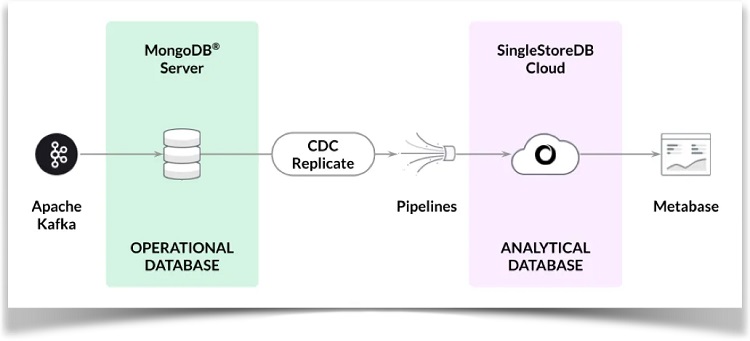

下圖顯示了系統的高級架構。
以后會發布重點介紹使用CDC解決方案的其他場景的文章。
MongoDB Atlas
我們將在M0 Sandbox中使用MongoDB Atlas。在Database Access下，我們將配置一個具有atlasAdmin權限的管理員用戶。在Network Access下，我們將臨時允許從任何地方（IP地址0.0.0.0/0）訪問。我們將記錄用戶名、密碼和主機。
Apache Kafka
我們將配置一個Kafka代理將數據流式傳輸?shù)組ongoDB Atlas。我們將使用Jupyter Notebook來實現這一目標。
首先，我們需要安裝一些庫：
!pip install pymongo kafka-python --quiet
接下來，我們將連接到MongoDB Atlas和Kafka代理：
from kafka import KafkaConsumer
from pymongo import MongoClient
try:
client = MongoClient("mongodb+srv://<username>:<password>@<host>/?retryWrites=true&w=majority")
db = client.adtech
print("連接成功")
except:
print("無法連接")
consumer = KafkaConsumer(
"ad_events",
bootstrap_servers = ["public-kafka.memcompute.com:9092"]
)我們將使用之前從MongoDB Atlas保存的值替換`<username>`、`<password>`和`<host>`。
首先，我們將加載100條記錄到MongoDB Atlas中：
MAX_ITERATIONS = 100
for iteration, message in enumerate(consumer, start = 1):
if iteration > MAX_ITERATIONS:
break
try:
record = message.value.decode("utf-8")
user_id, event_name, advertiser, campaign, gender, income, page_url, region, country = map(str.strip, record.split("\t"))
events_record = {
"user_id": int(user_id),
"event_name": event_name,
"advertiser": advertiser,
"campaign": int(campaign.split()[0]),
"gender": gender,
"income": income,
"page_url": page_url,
"region": region,
"country": country
}
db.events.insert_one(events_record)
except Exception as e:
print(f"Iteration {iteration}: 無法插入數據 - {str(e)}")數據應成功加載，并且我們應該看到一個名為`adtech`的數據庫和一個名為`events`的集合。集合中的文檔應具有類似以下示例的結構：
_id: ObjectId('64ec906d0e8c0f7bcf72a8ed')
user_id: 3857963415
event_name: "Impression"
advertiser: "Sherwin-Williams"
campaign: 13
gender: "Female"
income: "25k and below",
page_url: "/2013/02/how-to-make-glitter-valentines-heart-boxes.html/"
region: "Michigan"
country: "US"這些文檔表示廣告活動事件。events集合存儲了有關廣告商、廣告活動以及用戶的各種人口統計信息，如性別和收入。
SingleStore Kai
SingleStore Kai是一個實時分析平臺，可以處理大規模的數據和查詢。我們將使用CDC pipeline將數據從MongoDB Atlas傳播到SingleStore Kai。
之前的文章展示了創建免費SingleStoreDB Cloud帳戶的步驟。我們將使用以下設置：
工作區組名稱：CDC Demo Group
云提供商：AWS
地區：US East 1 (N. Virginia)
工作區名稱：cdc-demo
大小：S-00
設置：
選擇 SingleStore Kai 一旦工作區可用，我們會記下密碼和主機信息。從CDC Demo Group > Overview > Workspaces > cdc-demo > Connect > Connect Directly > SQL IDE > Host可以找到主機信息。我們稍后在Metabase中會需要這些信息。
我們還會通過配置CDC Demo Group > Firewall臨時允許從任何地方訪問。
從左側導航欄中，我們會選擇DEVELOP > SQL Editor來創建一個adtech數據庫和鏈接，如下所示：
CREATE DATABASE IF NOT EXISTS adtech;
USE adtech;
DROP LINK adtech.link;
CREATE LINK adtech.link AS MONGODB
CONFIG '{"mongodb.hosts": "<primary>:27017, <secondary>:27017, <secondary>:27017",
"collection.include.list": "adtech.*",
"mongodb.ssl.enabled": "true",
"mongodb.authsource": "admin",
"mongodb.members.auto.discover": "false"}'
CREDENTIALS '{"mongodb.user": "<username>",
"mongodb.password": "<password>"}';
CREATE TABLES AS INFER PIPELINE AS LOAD DATA LINK adtech.link '*' FORMAT AVRO;我們會用之前從MongoDB Atlas保存的值替換<username>和<password>。我們還需要用MongoDB Atlas中每個地址的完整地址替換<primary>，<secondary>和<secondary>的值。
現在我們來檢查是否有任何表，如下所示：
SHOW TABLES;
這應該會顯示一個名為events的表：
+------------------+ | Tables_in_adtech | +------------------+ | events | +------------------+
我們來檢查表的結構：
DESCRIBE events;
輸出應該如下所示：
+-------+------+------+------+---------+-------+ | Field | Type | Null | Key | Default | Extra | +-------+------+------+------+---------+-------+ | _id | text | NO | UNI | NULL | | | _more | JSON | NO | | NULL | | +-------+------+------+------+---------+-------+
接下來，我們來檢查是否有任何pipelines：
SHOW PIPELINES;
這將顯示一個名為events的pipeline，目前處于停止?fàn)顟B(tài)：
+---------------------+---------+-----------+ | Pipelines_in_adtech | State | Scheduled | +---------------------+---------+-----------+ | events | Stopped | False | +---------------------+---------+-----------+
現在我們來啟動events pipeline：
START ALL PIPELINES;
狀態應該變?yōu)镽unning：
+---------------------+---------+-----------+ | Pipelines_in_adtech | State | Scheduled | +---------------------+---------+-----------+ | events | Running | False | +---------------------+---------+-----------+
如果我們現在運行以下命令：
SELECT COUNT(*) FROM events;
它應該返回結果100：
+----------+ | COUNT(*) | +----------+ | 100 | +----------+
我們檢查events表中的一行，如下所示：
SELECT * FROM events LIMIT 1;
輸出應類似于以下內容：
+--------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| _id | _more |
+--------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| {"$oid": "64ec906d0e8c0f7bcf72a8f7"} | {"_id":{"$oid":"64ec906d0e8c0f7bcf72a8f7"},"advertiser":"Wendys","campaign":13,"country":"US","event_name":"Click","gender":"Female","income":"75k - 99k","page_url":"/2014/05/flamingo-pop-bridal-shower-collab-with.html","region":"New Mexico","user_id":3857963416} |
+--------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+成功連接到MongoDB Atlas并將所有100條記錄復制到SingleStore Kai的CDC解決方案。
現在，讓我們使用Metabase創建一個儀表板。
Metabase
在之前的文章中，我們?cè)敿?xì)介紹了安裝、配置和創建與Metabase的連接的方法。我們將使用稍微變化的查詢來創建可視化。
1. 事件總數SQL
SELECT COUNT(*) FROM events;
2. 按地區統計事件SQL
SELECT _more::country AS `events.country`, COUNT(_more::country) AS 'events.countofevents' FROM adtech.events AS events GROUP BY 1;
3. 前5個廣告商的事件數量SQL
SELECT _more::advertiser AS `events.advertiser`, COUNT(*) AS `events.count` FROM adtech.events AS events WHERE (_more::advertiser LIKE '%Subway%' OR _more::advertiser LIKE '%McDonals%' OR _more::advertiser LIKE '%Starbucks%' OR _more::advertiser LIKE '%Dollar General%' OR _more::advertiser LIKE '%YUM! Brands%' OR _more::advertiser LIKE '%Dunkin Brands Group%') GROUP BY 1 ORDER BY `events.count` DESC;
4. 廣告訪客按性別和收入分類SQL
SELECT * FROM (SELECT *, DENSE_RANK() OVER (ORDER BY xx.z___min_rank) AS z___pivot_row_rank, RANK() OVER (PARTITION BY xx.z__pivot_col_rank ORDER BY xx.z___min_rank) AS z__pivot_col_ordering, CASE WHEN xx.z___min_rank = xx.z___rank THEN 1 ELSE 0 END AS z__is_highest_ranked_cell FROM (SELECT *, Min(aa.z___rank) OVER (PARTITION BY aa.`events.income`) AS z___min_rank FROM (SELECT *, RANK() OVER (ORDER BY CASE WHEN bb.z__pivot_col_rank = 1 THEN (CASE WHEN bb.`events.count` IS NOT NULL THEN 0 ELSE 1 END) ELSE 2 END, CASE WHEN bb.z__pivot_col_rank = 1 THEN bb.`events.count` ELSE NULL END DESC, bb.`events.count` DESC, bb.z__pivot_col_rank, bb.`events.income`) AS z___rank FROM (SELECT *, DENSE_RANK() OVER (ORDER BY CASE WHEN ww.`events.gender` IS NULL THEN 1 ELSE 0 END, ww.`events.gender`) AS z__pivot_col_rank FROM (SELECT _more::gender AS `events.gender`, _more::income AS `events.income`, COUNT(*) AS `events.count` FROM adtech.events AS events WHERE (_more::income <> 'unknown' OR _more::income IS NULL) GROUP BY 1, 2) ww) bb WHERE bb.z__pivot_col_rank <= 16384) aa) xx) zz WHERE (zz.z__pivot_col_rank <= 50 OR zz.z__is_highest_ranked_cell = 1) AND (zz.z___pivot_row_rank <= 500 OR zz.z__pivot_col_ordering = 1) ORDER BY zz.z___pivot_row_rank;
下圖顯示了在AdTech儀表板上調整大小和位置的圖表示例。
我們將設置自動刷新選項為1分鐘。文章來源：http://www.zghlxwxcb.cn/article/666.html
如果我們?cè)贛ongoDB Atlas中使用Jupyter筆記本加載更多數據，只需更改MAX_ITERATIONS，我們將看到數據傳播到SingleStore Kai，并在AdTech儀表板中反映出新的數據。文章來源地址http://www.zghlxwxcb.cn/article/666.html
